🛠Lite.Ai.ToolKit: A lite C++ toolkit of 100+ Awesome AI models, such as Object Detection, Face Detection, Face Recognition, Segmentation, Matting, etc. See Model Zoo and ONNX Hub, MNN Hub, TNN Hub, NCNN Hub. Welcome to 🌟👆🏻star this repo to support me, many thanks ~ 🎉🎉

📖 News 🔥🔥

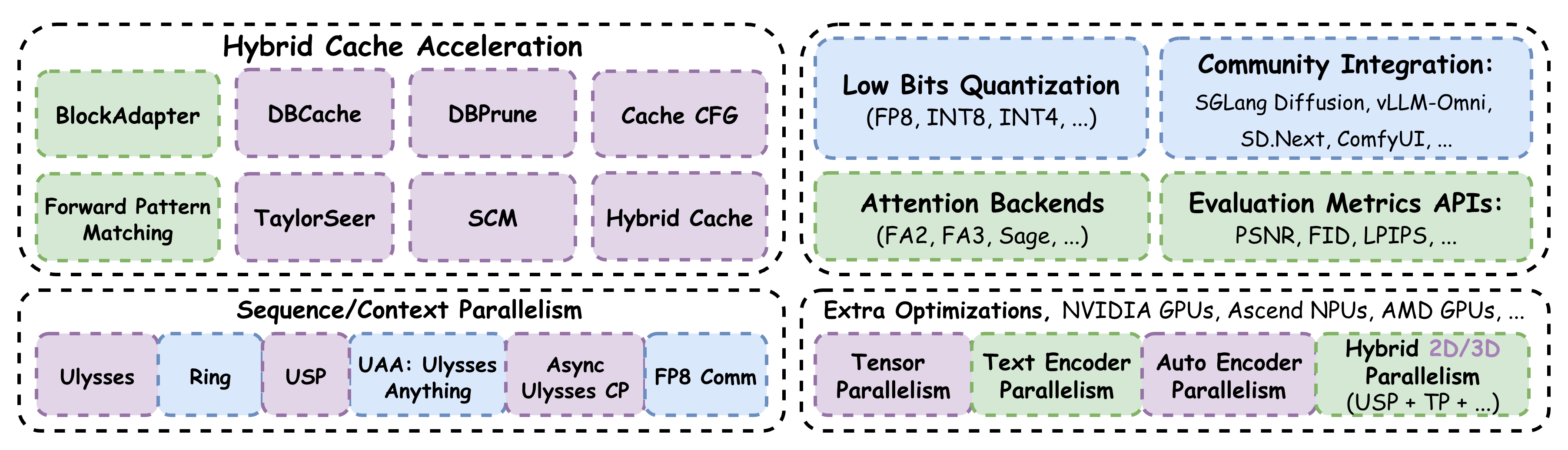

• [2026/03] Cache-DiT 🎉v1.3.0 release is ready, the major updates including: Ring Attention w/ batched P2P, USP (Hybrid Ring and Ulysses), Hybrid 2D and 3D Parallelism (💥USP + TP), VAE-P Comm overhead reduce.

• Most of my time now is focused on LLM/VLM Inference. Please check 📖Awesome-LLM-Inference and 📖LeetCUDA for more details. Now, lite.ai.toolkit is mainly maintained by 🎉@wangzijian1010.

Citations 🎉🎉

@misc{lite.ai.toolkit@2021,
  title={lite.ai.toolkit: A lite C++ toolkit of 100+ Awesome AI models.},
  url={https://github.com/xlite-dev/lite.ai.toolkit},
  note={Open-source software available at https://github.com/xlite-dev/lite.ai.toolkit},
  author={xlite-dev, wangzijian1010 etc},
  year={2021}
}

Features 👏👋

• Simply and User friendly. Simply and Consistent syntax like lite::cv::Type::Class, see examples.
• Minimum Dependencies. Only OpenCV and ONNXRuntime are required by default, see build.
• Many Models Supported. 300+ C++ implementations and 500+ weights 👉 Supported-Matrix.

Build 👇👇

Download prebuilt lite.ai.toolkit library from tag/v0.2.0, or just build it from source:

git clone --depth=1 https://github.com/xlite-dev/lite.ai.toolkit.git  # latest
cd lite.ai.toolkit && sh ./build.sh # >= 0.2.0, support Linux only, tested on Ubuntu 20.04.6 LTS

Quick Start 🌟🌟

Example0: Object Detection using YOLOv5. Download model from Model-Zoo².

#include "lite/lite.h"
int main(int argc, char *argv[]) {
  std::string onnx_path = "yolov5s.onnx";
  std::string test_img_path = "test_yolov5.jpg";
  std::string save_img_path = "test_results.jpg";
auto *yolov5 = new lite::cv::detection::YoloV5(onnx_path);
  std::vector detected_boxes;
  cv::Mat img_bgr = cv::imread(test_img_path);
  yolov5->detect(img_bgr, detected_boxes);

  lite::utils::draw_boxes_inplace(img_bgr, detected_boxes);
  cv::imwrite(save_img_path, img_bgr);
  delete yolov5;
  return 0;
}

You can download the prebuilt lite.ai.tooklit library and test resources from tag/v0.2.0.

export LITE_AI_TAG_URL=https://github.com/xlite-dev/lite.ai.toolkit/releases/download/v0.2.0
wget ${LITE_AI_TAG_URL}/lite-ort1.17.1+ocv4.9.0+ffmpeg4.2.2-linux-x86_64.tgz
wget ${LITE_AI_TAG_URL}/yolov5s.onnx && wget ${LITE_AI_TAG_URL}/test_yolov5.jpg

🎉🎉TensorRT: Boost inference performance with NVIDIA GPU via TensorRT.

Run bash ./build.sh tensorrt to build lite.ai.toolkit with TensorRT support, and then test yolov5 with the codes below. NOTE: lite.ai.toolkit need TensorRT 10.x (or later) and CUDA 12.x (or later). Please check build.sh, tensorrt-linux-x86_64-install.zh.md, test_lite_yolov5.cpp and NVIDIA/TensorRT for more details.

// trtexec --onnx=yolov5s.onnx --saveEngine=yolov5s.engine
auto *yolov5 = new lite::trt::cv::detection::YOLOV5(engine_path);

Quick Setup 👀

To quickly setup lite.ai.toolkit, you can follow the CMakeLists.txt listed as belows. 👇👀

set(lite.ai.toolkit_DIR YOUR-PATH-TO-LITE-INSTALL)
find_package(lite.ai.toolkit REQUIRED PATHS ${lite.ai.toolkit_DIR})
add_executable(lite_yolov5 test_lite_yolov5.cpp)
target_link_libraries(lite_yolov5 ${lite.ai.toolkit_LIBS})

Mixed with MNN or ONNXRuntime 👇👇

The goal of lite.ai.toolkit is not to abstract on top of MNN and ONNXRuntime. So, you can use lite.ai.toolkit mixed with MNN(-DENABLE_MNN=ON, default OFF) or ONNXRuntime(-DENABLE_ONNXRUNTIME=ON, default ON). The lite.ai.toolkit installation package contains complete MNN and ONNXRuntime. The workflow may looks like:

#include "lite/lite.h"
// 0. use yolov5 from lite.ai.toolkit to detect objs.
auto *yolov5 = new lite::cv::detection::YoloV5(onnx_path);
// 1. use OnnxRuntime or MNN to implement your own classfier.
interpreter = std::shared_ptr(MNN::Interpreter::createFromFile(mnn_path));
// or: session = new Ort::Session(ort_env, onnx_path, session_options);
classfier = interpreter->createSession(schedule_config);
// 2. then, classify the detected objs use your own classfier ...

The included headers of MNN and ONNXRuntime can be found at mnn_config.h and ort_config.h.

🔑️ Check the detailed Quick Start！Click here!

Download resources

You can download the prebuilt lite.ai.tooklit library and test resources from tag/v0.2.0.

export LITE_AI_TAG_URL=https://github.com/xlite-dev/lite.ai.toolkit/releases/download/v0.2.0
wget ${LITE_AI_TAG_URL}/lite-ort1.17.1+ocv4.9.0+ffmpeg4.2.2-linux-x86_64.tgz
wget ${LITE_AI_TAG_URL}/yolov5s.onnx && wget ${LITE_AI_TAG_URL}/test_yolov5.jpg
tar -zxvf lite-ort1.17.1+ocv4.9.0+ffmpeg4.2.2-linux-x86_64.tgz

Write test code

write YOLOv5 example codes and name it test_lite_yolov5.cpp:

#include "lite/lite.h"

int main(int argc, char *argv[]) {
  std::string onnx_path = "yolov5s.onnx";
  std::string test_img_path = "test_yolov5.jpg";
  std::string save_img_path = "test_results.jpg";
auto *yolov5 = new lite::cv::detection::YoloV5(onnx_path);
  std::vector detected_boxes;
  cv::Mat img_bgr = cv::imread(test_img_path);
  yolov5->detect(img_bgr, detected_boxes);

  lite::utils::draw_boxes_inplace(img_bgr, detected_boxes);
  cv::imwrite(save_img_path, img_bgr);
  delete yolov5;
  return 0;
}

Setup CMakeLists.txt

cmake_minimum_required(VERSION 3.10)
project(lite_yolov5)
set(CMAKE_CXX_STANDARD 17)
set(lite.ai.toolkit_DIR YOUR-PATH-TO-LITE-INSTALL)
find_package(lite.ai.toolkit REQUIRED PATHS ${lite.ai.toolkit_DIR})
if (lite.ai.toolkit_Found)
    message(STATUS "lite.ai.toolkit_INCLUDE_DIRS: ${lite.ai.toolkit_INCLUDE_DIRS}")
    message(STATUS "        lite.ai.toolkit_LIBS: ${lite.ai.toolkit_LIBS}")
    message(STATUS "   lite.ai.toolkit_LIBS_DIRS: ${lite.ai.toolkit_LIBS_DIRS}")
endif()
add_executable(lite_yolov5 test_lite_yolov5.cpp)
target_link_libraries(lite_yolov5 ${lite.ai.toolkit_LIBS})

Build example

mkdir build && cd build && cmake .. && make -j1

Then, export the lib paths to LD_LIBRARY_PATH which listed by lite.ai.toolkit_LIBS_DIRS.

export LD_LIBRARY_PATH=YOUR-PATH-TO-LITE-INSTALL/lib:$LD_LIBRARY_PATH
export LD_LIBRARY_PATH=YOUR-PATH-TO-LITE-INSTALL/third_party/opencv/lib:$LD_LIBRARY_PATH
export LD_LIBRARY_PATH=YOUR-PATH-TO-LITE-INSTALL/third_party/onnxruntime/lib:$LD_LIBRARY_PATH
export LD_LIBRARY_PATH=YOUR-PATH-TO-LITE-INSTALL/third_party/MNN/lib:$LD_LIBRARY_PATH # if -DENABLE_MNN=ON

Run binary:

cp ../yolov5s.onnx ../test_yolov.jpg .
./lite_yolov5

The output logs:

LITEORT_DEBUG LogId: ../examples/hub/onnx/cv/yolov5s.onnx
=============== Input-Dims ==============
Name: images
Dims: 1
Dims: 3
Dims: 640
Dims: 640
=============== Output-Dims ==============
Output: 0 Name: pred Dim: 0 :1
Output: 0 Name: pred Dim: 1 :25200
Output: 0 Name: pred Dim: 2 :85
Output: 1 Name: output2 Dim: 0 :1
......
Output: 3 Name: output4 Dim: 1 :3
Output: 3 Name: output4 Dim: 2 :20
Output: 3 Name: output4 Dim: 3 :20
Output: 3 Name: output4 Dim: 4 :85
========================================
detected num_anchors: 25200
generate_bboxes num: 48

Supported Models Matrix

• / = not supported now.
• ✅ = known work and official supported now.
• ✔️ = known work, but unofficial supported now.
• ❔ = in my plan, but not coming soon, maybe a few months later.

NVIDIA GPU Inference: TensorRT

|Class|Class|Class|Class|Class| System | Engine | |:---:|:---:|:---:|:---:|:---:|:---:|:---:| |✅YOLOv5|✅YOLOv6|✅YOLOv8|✅YOLOv8Face|✅YOLOv5Face| Linux | TensorRT | |✅YOLOX|✅YOLOv5BlazeFace |✅StableDiffusion| ✅FaceFusion | / | Linux | TensorRT |

CPU Inference: ONNXRuntime, MNN, NCNN and TNN

| Class | Size | Type | Demo | ONNXRuntime | MNN | NCNN | TNN | Linux | MacOS | Windows | Android | |:-----------------------------------------------------------------------------------------------------------------:|:-----:|:----------------:|:----------------------------------------------------------------------------------------------------------------------:|:-----------:|:---:|:----:|:---:|:-----:|:-----:|:-------:|:-------:| | YoloV5 | 28M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | YoloV3 | 236M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | TinyYoloV3 | 33M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | YoloV4 | 176M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | SSD | 76M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | SSDMobileNetV1 | 27M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | YoloX | 3.5M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | TinyYoloV4VOC | 22M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | TinyYoloV4COCO | 22M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | YoloR | 39M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | ScaledYoloV4 | 270M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | EfficientDet | 15M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | EfficientDetD7 | 220M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | EfficientDetD8 | 322M | detection | demo | ✅ | / | / | / | ✅ | ✔️ | ✔️ | / | | YOLOP | 30M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | NanoDet | 1.1M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | NanoDetPlus | 4.5M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | NanoDetEffi... | 12M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | YoloX_V_0_1_1 | 3.5M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | YoloV5_V_6_0 | 7.5M | detection | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | GlintArcFace | 92M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | ❔ | | GlintCosFace | 92M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | GlintPartialFC | 170M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | FaceNet | 89M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | FocalArcFace | 166M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | FocalAsiaArcFace | 166M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | TencentCurricularFace | 249M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | TencentCifpFace | 130M | faceid | demo | ✅ | ✅ | ✅ | ✅ | ✅ | ✔️ | ✔️ | / | | CenterLossFace | 280M | faceid | [demo](https://github
