ngxson/esp32-usb-to-airprint

Add AirPrint / AirScan support to your old printer, using just a cheap ESP32-S3

[!IMPORTANT]

This project is actively looking for contributors to add support for more printers. Most importantly, you need to really own the printer you add: every driver must be tested on the real hardware, not only in emulation. See Adding a printer to get started.

Turns any USB-only printers into a wireless printer and scanner. An ESP32-S3 board plugs into the printer's USB port and joins your WiFi:

• Print from iPhone, iPad and Mac (AirPrint), Android (Mopria) and Linux, with no drivers or apps.

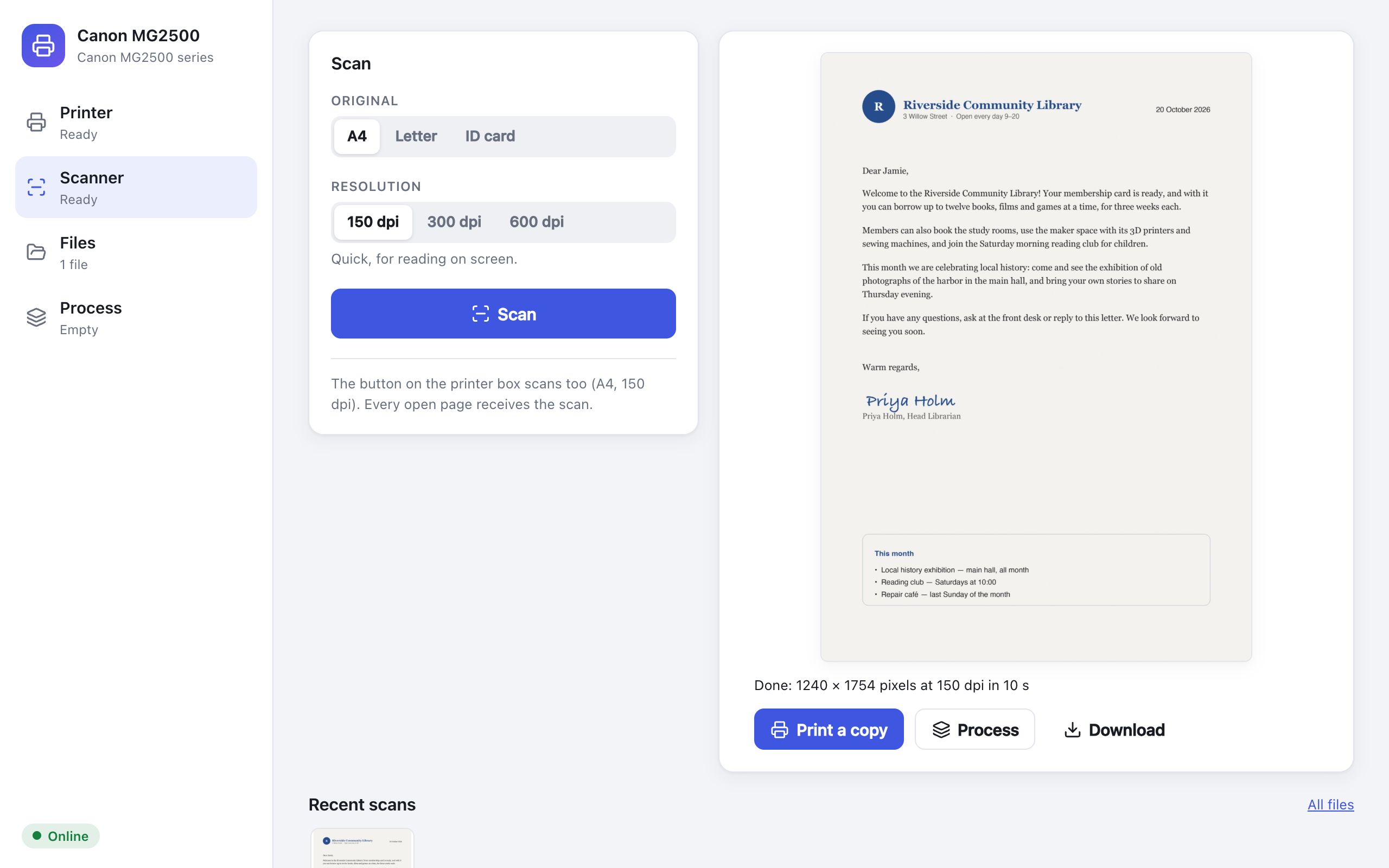

• Scan from any browser, from Image Capture and Preview on a Mac, or with the button on the board.

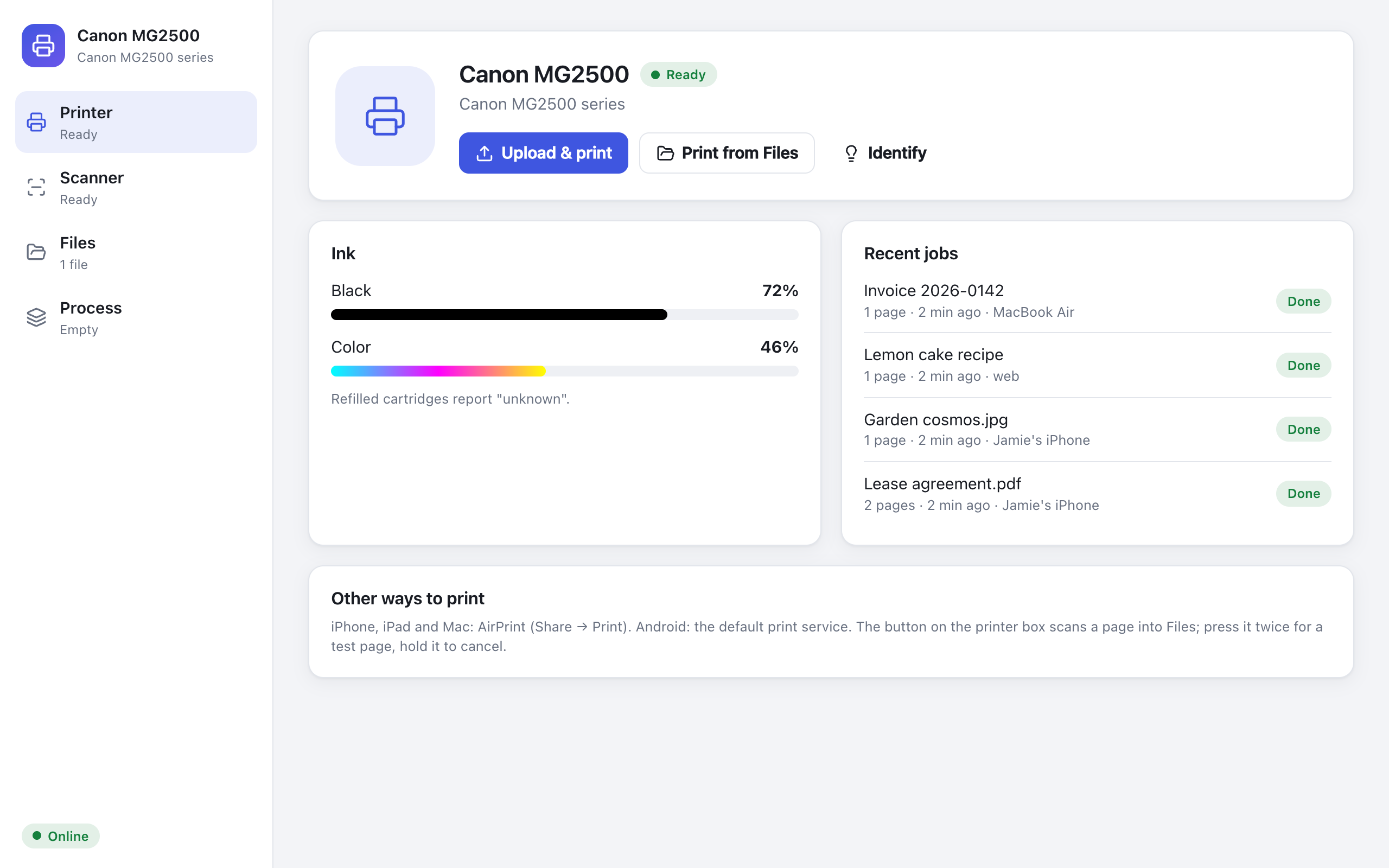

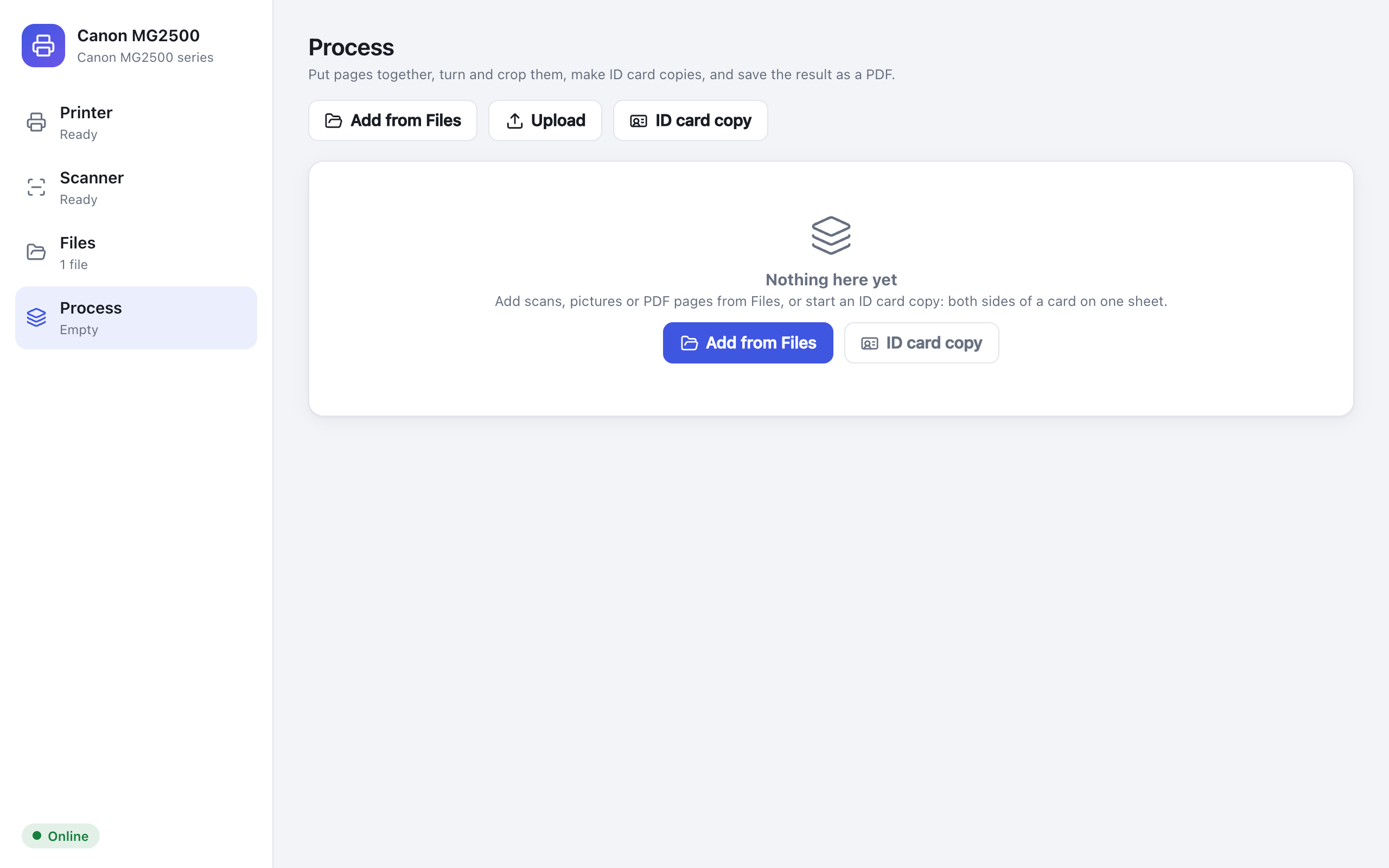

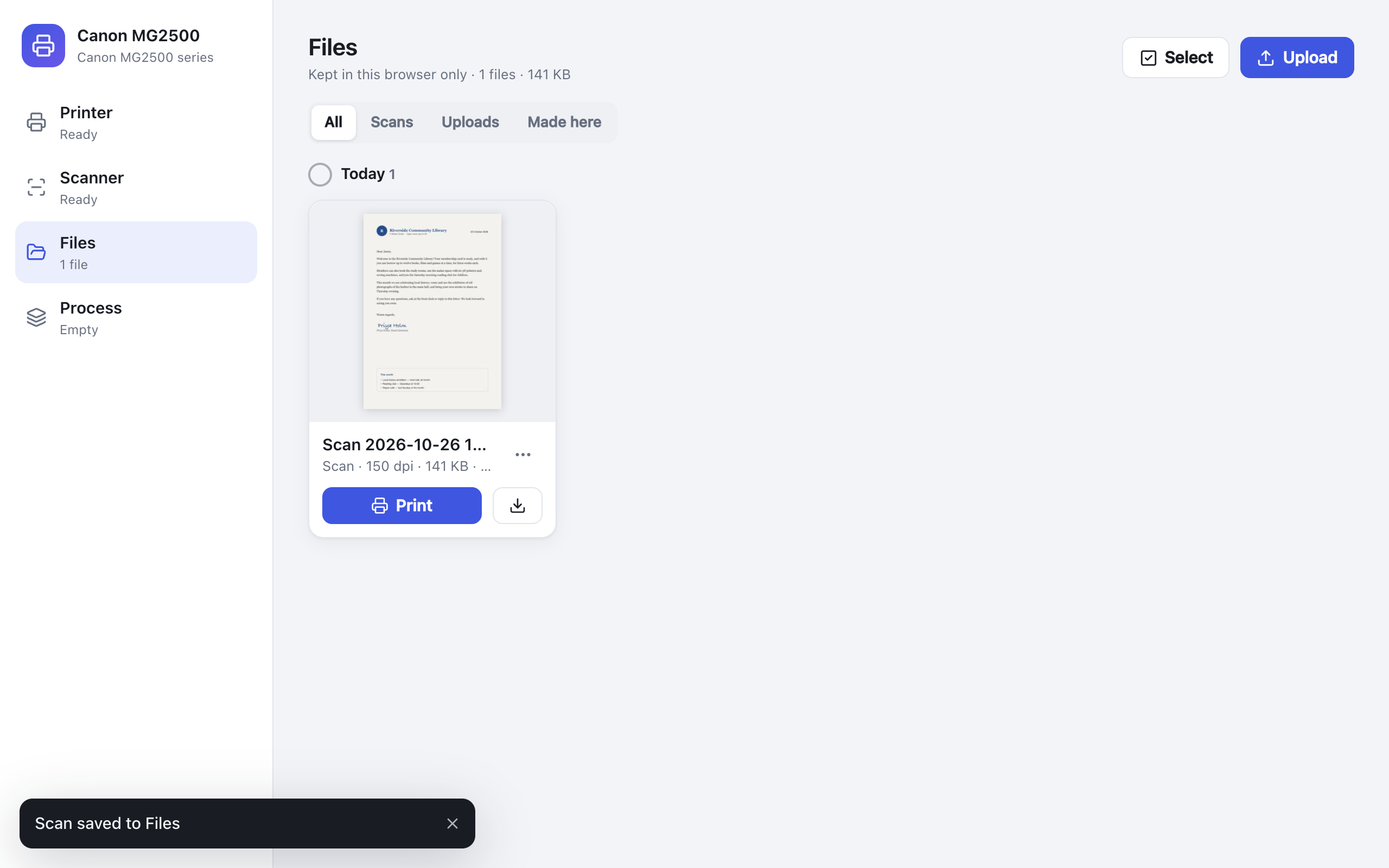

• A web app on your phone or computer: print PDFs and pictures, scan, keep the files in the browser, and put pages together (rotate, crop, ID card copies) into a PDF.

| | | |---|---| | | | | | |

Supported printers

| Series | Models | Scan | |---|---|---| | 🟢 MG2500 | MG2550S | yes | | 🟡 MG2400 | MG2410 to MG2490 | yes | | 🟡 MG2500 | MG2510 to MG2590 (other than the MG2500S) | yes | | 🟡 P200 | P200 | no scanner | | 🟡 MG2900 | MG2910 to MG2990 | yes | | 🟡 MG3000 | MG3010 to MG3090 | yes | | 🟡 E470 | E470 to E478 | yes | | 🟡 E460 | E460 to E468 | yes | | 🟡 iP2800 | iP2810 to iP2899 | no scanner | | 🟡 E3100 | E3170 to E3195 | yes | | 🟡 TS3100 | TS3110 to TS3195 | yes | | 🟡 MP230 | MP230 to MP237 | yes | | 🟡 iP2700 | iP2700 to iP2788 | no scanner | | 🟡 MP250, MP270, MP280 | MP250 to MP288 | yes | | 🟡 MP490, MP493, MP495 | MP490 to MP499 | yes | | 🟡 MX340, MX350 | MX340 to MX358 | yes (glass only) | | 🟡 MX360, MX410, MX420 | MX360 to MX428 | yes (glass only) |

• 🟢 Validated on real printer
• 🟡 Expected to work, not tested on real hardware yet.

The firmware recognises the printer when it is plugged in. Other printers? Please open an issue or a PR.

What you need

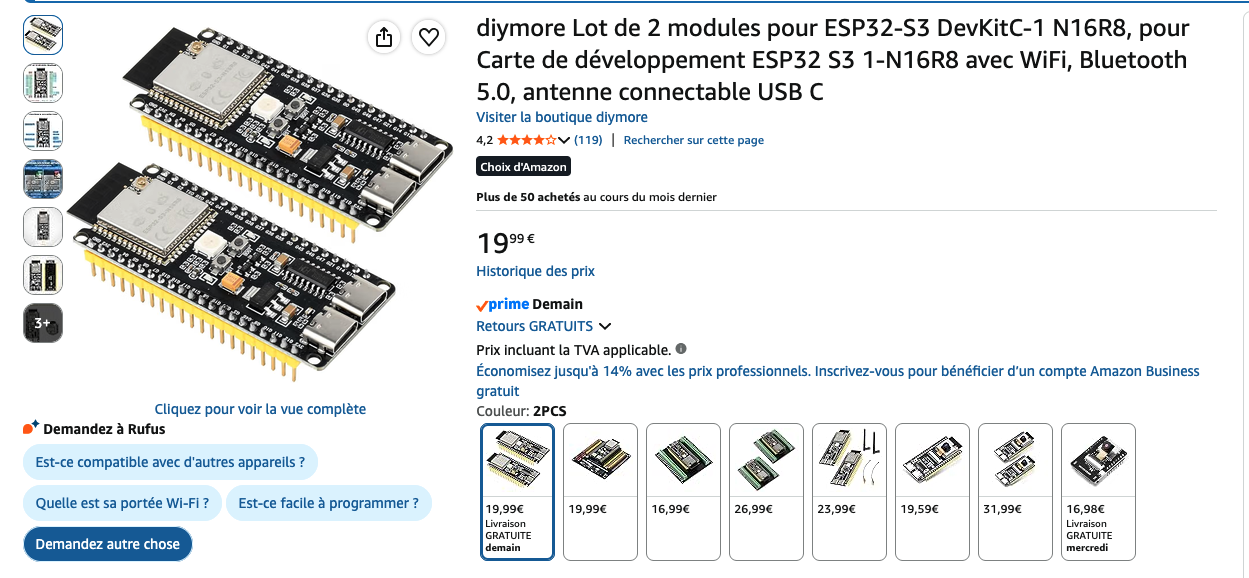

Just one thing: An ESP32-S3 dev board with two USB-C ports:

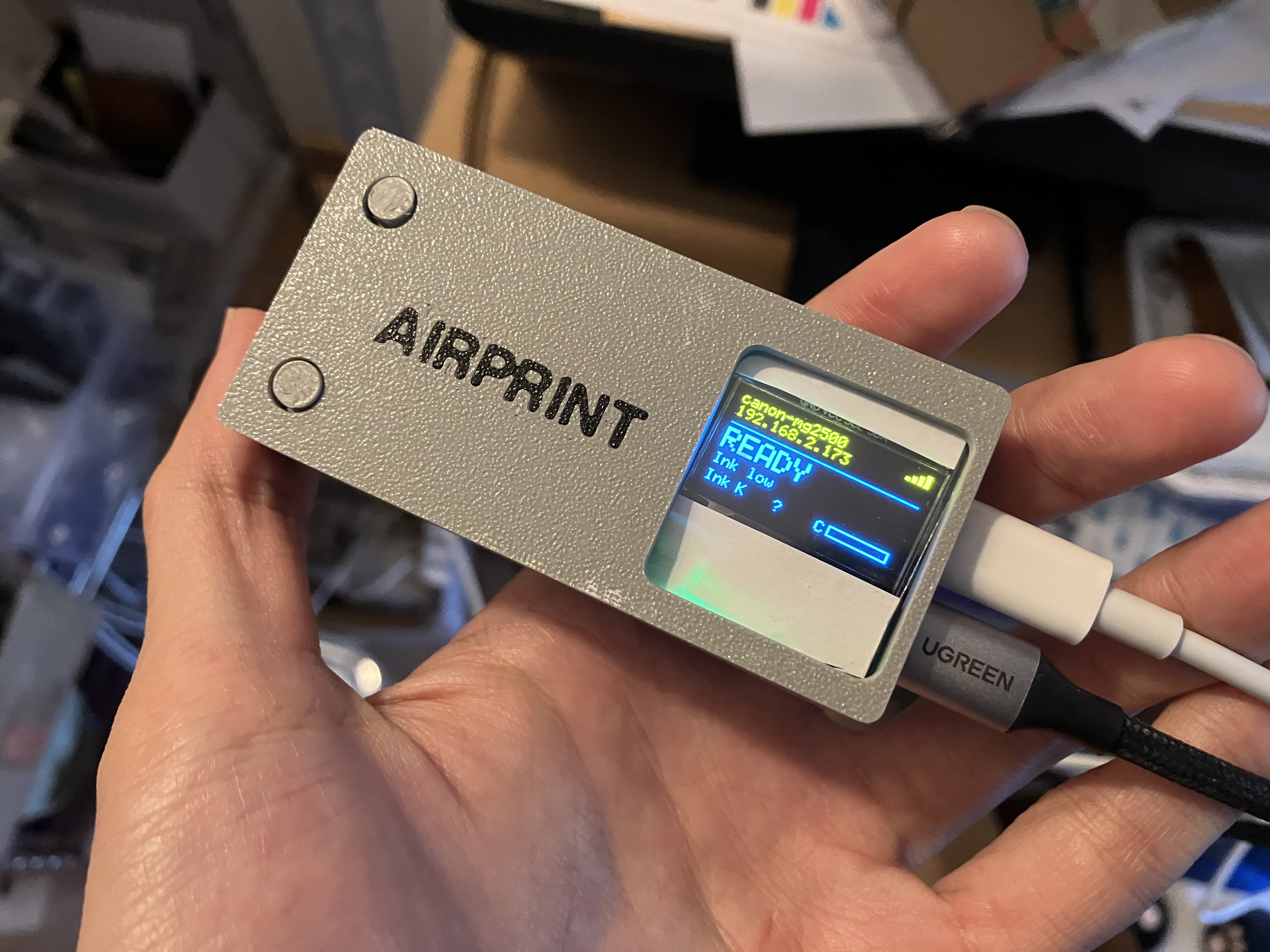

Optionally: a SSD1315 OLED screen and a 3D-printed case, see later in this tutorial

Setup

Step 1: Hardware. Plug the ESP32-S3 into your computer via the COM port on the ESP32 board (NOT the port labelled "USB")

Step 2: Settings. Build once (pio run): this creates .env. Edit it:

   WIFI_SSID=your-network
   WIFI_PASSWORD=your-password
   PRINTER_NAME=Canon MG2500 (ESP32)
   HOSTNAME=canon-mg2500
   MODE=debug


MODE=debug lets you update the board over WiFi later (see below); MODE=normal does without. .env is git-ignored, so your WiFi password stays local.

Step 3: Flash. Connect the board's COM port to your computer and run pio run -t upload. PlatformIO finds the board's serial port; if several are connected, add --upload-port /dev/cu.usbmodem….

Using it

Plug the printer to the port labelled "USB"

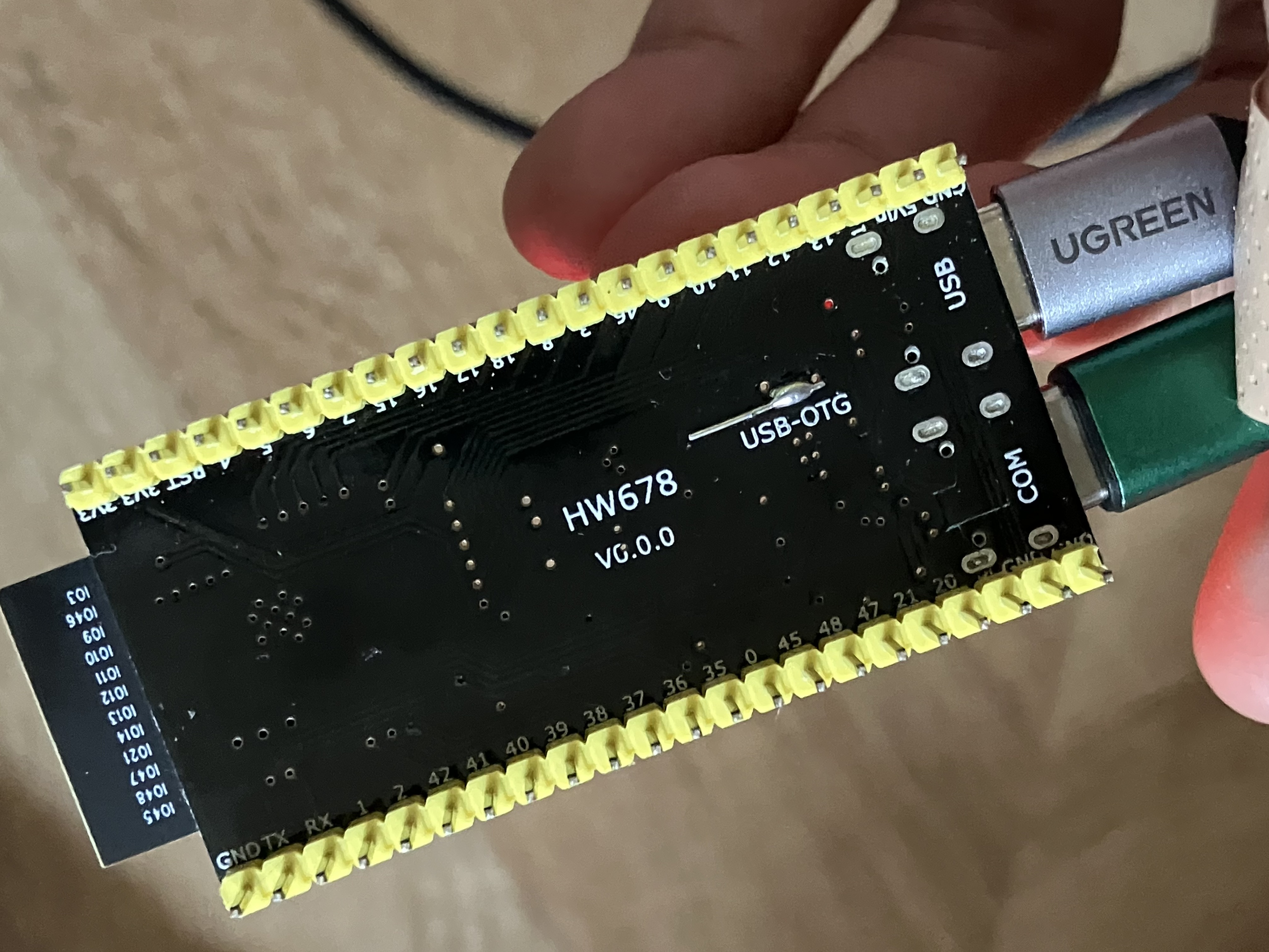

NOTE: You may also need to bridge the "USB-OTG" solder join on the board, so that it supplies 5V to the printer. While the printer doesn't actively use 5V, it sense the USB plug using this signal.

• The web app: open http://canon-mg2500.local/ (your HOSTNAME) on your phone or computer.
• The button on the board (BOOT, or one on GPIO4): press to scan, press twice for a test page, hold 2 s to cancel.
• Print from a phone or a Mac: on an iPhone, Share → Print and pick the printer. On a Mac, add it in System Settings → Printers & Scanners.
• Scan on a Mac: open Image Capture (or Preview → File → Import from Scanner) and pick the printer.

Adding OLED screen and buttons

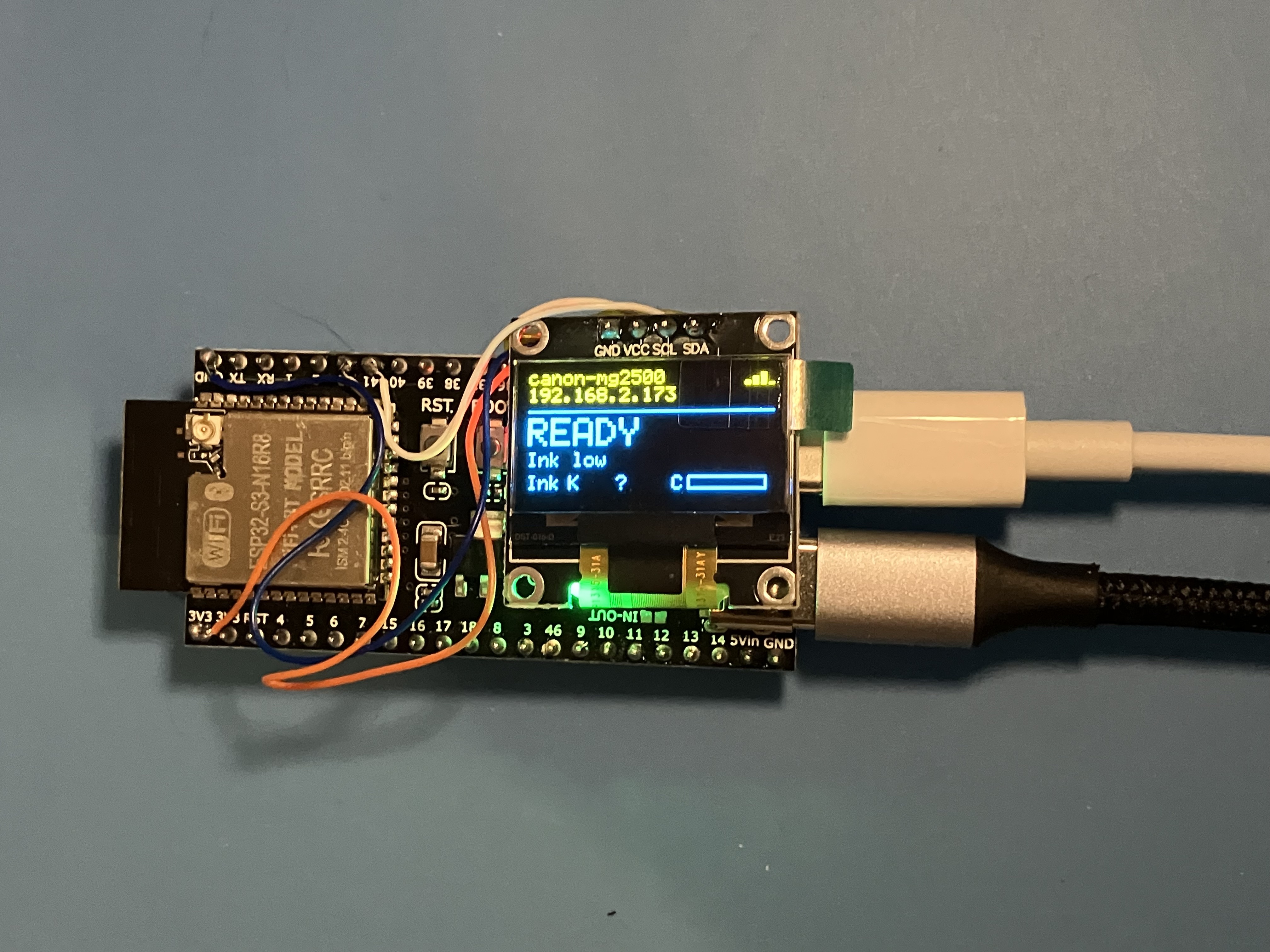

This step is optional, you can connect a SSD1315 OLED screen with the pinout below:

| OLED | ESP32-S3 | |---|---| | VCC | 3V3 | | GND | GND | | SCL | GPIO41 | | SDA | GPIO42 |

Connect it before powering on: the board only looks for it at startup.

For buttons, wire each one between a pin and GND:

| Button | ESP32-S3 | Action | |---|---|---| | 1 | GPIO4 | Same as BOOT (scan, test page, cancel) | | 2 | GPIO5 | Not assigned: add your own in on_user_button() (src/main.c) |

While the screen is off, a press only wakes it up.

Development

Set MODE=dev and flash: print jobs are processed but not printed, and scans show a built-in test page.

On the computer, without the board: make -C host && cd host && ./airprint_host, then open http://localhost:8631/ (an emulated printer and scanner). To work on the web app with live reloading: cd web && npm run dev (it talks to that server; DEVICE=http:// npm run dev talks to the board).

Technical details are in AGENTS.md.

Adding a printer

Each printer model is a driver in components/printers/, listed in printers.c; the firmware picks the one of the printer that is plugged in. A Canon PIXMA whose stream is close to the MG2500's is one line in canon_pixma.c; another printer is a new file in the same folder. See AGENTS.md for details.

License

MIT, see LICENSE.

The printer and scanner protocols follow Gutenprint and SANE's pixma backend. The JPEG encoder's DCT is a translation of libjpeg's jfdctint.c: this software is based in part on the work of the Independent JPEG Group. The web UI bundles Svelte (MIT) and pdf.js (Apache-2.0).
