• num_classes: int.

• dim: int.

• depth: int.

• heads: int.

• mlp_dim: int.

• channels: int, default 3.

• dropout: float between [0, 1], default 0..

• emb_dropout: float between [0, 1], default 0.

• pool: string, either cls token pooling or mean pooling

Simple ViT

An update from some of the same authors of the original paper proposes simplifications to ViT that allows it to train faster and better.

Among these simplifications include 2d sinusoidal positional embedding, global average pooling (no CLS token), no dropout, batch sizes of 1024 rather than 4096, and use of RandAugment and MixUp augmentations. They also show that a simple linear at the end is not significantly worse than the original MLP head

You can use it by importing the SimpleViT as shown below

import torch
from vit_pytorch import SimpleViT
v = SimpleViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 16,
    mlp_dim = 2048
)
img = torch.randn(1, 3, 256, 256)
preds = v(img) # (1, 1000)

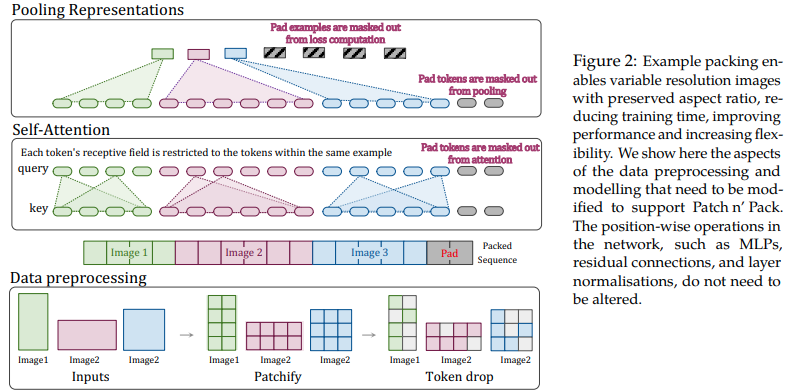

NaViT

This paper proposes to leverage the flexibility of attention and masking for variable lengthed sequences to train images of multiple resolution, packed into a single batch. They demonstrate much faster training and improved accuracies, with the only cost being extra complexity in the architecture and dataloading. They use factorized 2d positional encodings, token dropping, as well as query-key normalization.

You can use it as follows

import torch
from vit_pytorch.na_vit import NaViT
v = NaViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1,
    token_dropout_prob = 0.1  # token dropout of 10% (keep 90% of tokens)
)
5 images of different resolutions - List[List[Tensor]]
for now, you'll have to correctly place images in same batch element as to not exceed maximum allowed sequence length for self-attention w/ masking
images = [
    [torch.randn(3, 256, 256), torch.randn(3, 128, 128)],
    [torch.randn(3, 128, 256), torch.randn(3, 256, 128)],
    [torch.randn(3, 64, 256)]
]
preds = v(images) # (5, 1000) - 5, because 5 images of different resolution above

Or if you would rather that the framework auto group the images into variable lengthed sequences that do not exceed a certain max length

images = [
    torch.randn(3, 256, 256),
    torch.randn(3, 128, 128),
    torch.randn(3, 128, 256),
    torch.randn(3, 256, 128),
    torch.randn(3, 64, 256)
]
preds = v(
    images,
    group_images = True,
    group_max_seq_len = 64
) # (5, 1000)

Finally, if you would like to make use of a flavor of NaViT using nested tensors (which will omit a lot of the masking and padding altogether), make sure you are on version 2.5 and import as follows

import torch
from vit_pytorch.na_vit_nested_tensor import NaViT
v = NaViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.,
    emb_dropout = 0.,
    token_dropout_prob = 0.1
)
5 images of different resolutions - List[Tensor]
images = [
    torch.randn(3, 256, 256), torch.randn(3, 128, 128),
    torch.randn(3, 128, 256), torch.randn(3, 256, 128),
    torch.randn(3, 64, 256)
]
preds = v(images)
assert preds.shape == (5, 1000)

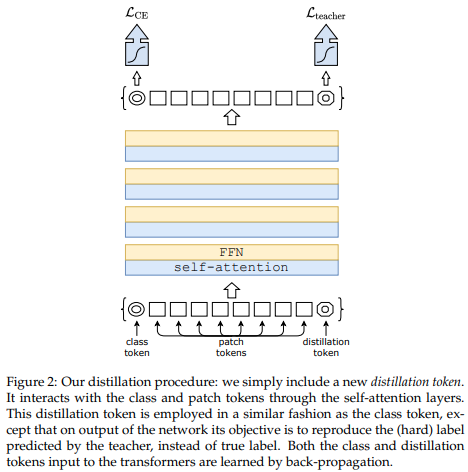

Distillation

A recent paper has shown that use of a distillation token for distilling knowledge from convolutional nets to vision transformer can yield small and efficient vision transformers. This repository offers the means to do distillation easily.

ex. distilling from Resnet50 (or any teacher) to a vision transformer

import torch
from torchvision.models import resnet50
from vit_pytorch.distill import DistillableViT, DistillWrapper
teacher = resnet50(pretrained = True)
v = DistillableViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 8,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)
distiller = DistillWrapper(
    student = v,
    teacher = teacher,
    temperature = 3,           # temperature of distillation
    alpha = 0.5,               # trade between main loss and distillation loss
    hard = False               # whether to use soft or hard distillation
)
img = torch.randn(2, 3, 256, 256)
labels = torch.randint(0, 1000, (2,))
loss = distiller(img, labels)
loss.backward()
after lots of training above ...
pred = v(img) # (2, 1000)

The DistillableViT class is identical to ViT except for how the forward pass is handled, so you should be able to load the parameters back to ViT after you have completed distillation training.

You can also use the handy .to_vit method on the DistillableViT instance to get back a ViT instance.

v = v.to_vit()
type(v) #

Deep ViT

This paper notes that ViT struggles to attend at greater depths (past 12 layers), and suggests mixing the attention of each head post-softmax as a solution, dubbed Re-attention. The results line up with the Talking Heads paper from NLP.

You can use it as follows

import torch
from vit_pytorch.deepvit import DeepViT
v = DeepViT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 6,
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)
img = torch.randn(1, 3, 256, 256)
preds = v(img) # (1, 1000)

CaiT

This paper also notes difficulty in training vision transformers at greater depths and proposes two solutions. First it proposes to do per-channel multiplication of the output of the residual block. Second, it proposes to have the patches attend to one another, and only allow the CLS token to attend to the patches in the last few layers.

They also add Talking Heads, noting improvements

You can use this scheme as follows

import torch
from vit_pytorch.cait import CaiT
v = CaiT(
    image_size = 256,
    patch_size = 32,
    num_classes = 1000,
    dim = 1024,
    depth = 12,             # depth of transformer for patch to patch attention only
    cls_depth = 2,          # depth of cross attention of CLS tokens to patch
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1,
    layer_dropout = 0.05    # randomly dropout 5% of the layers
)
img = torch.randn(1, 3, 256, 256)
preds = v(img) # (1, 1000)

Token-to-Token ViT

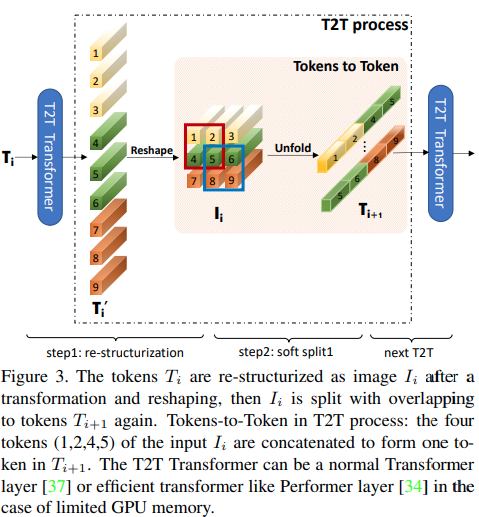

This paper proposes that the first couple layers should downsample the image sequence by unfolding, leading to overlapping image data in each token as shown in the figure above. You can use this variant of the ViT as follows.

import torch
from vit_pytorch.t2t import T2TViT
v = T2TViT(
    dim = 512,
    image_size = 224,
    depth = 5,
    heads = 8,
    mlp_dim = 512,
    num_classes = 1000,
    t2t_layers = ((7, 4), (3, 2), (3, 2)) # tuples of the kernel size and stride of each consecutive layers of the initial token to token module
)
img = torch.randn(1, 3, 224, 224)
preds = v(img) # (1, 1000)

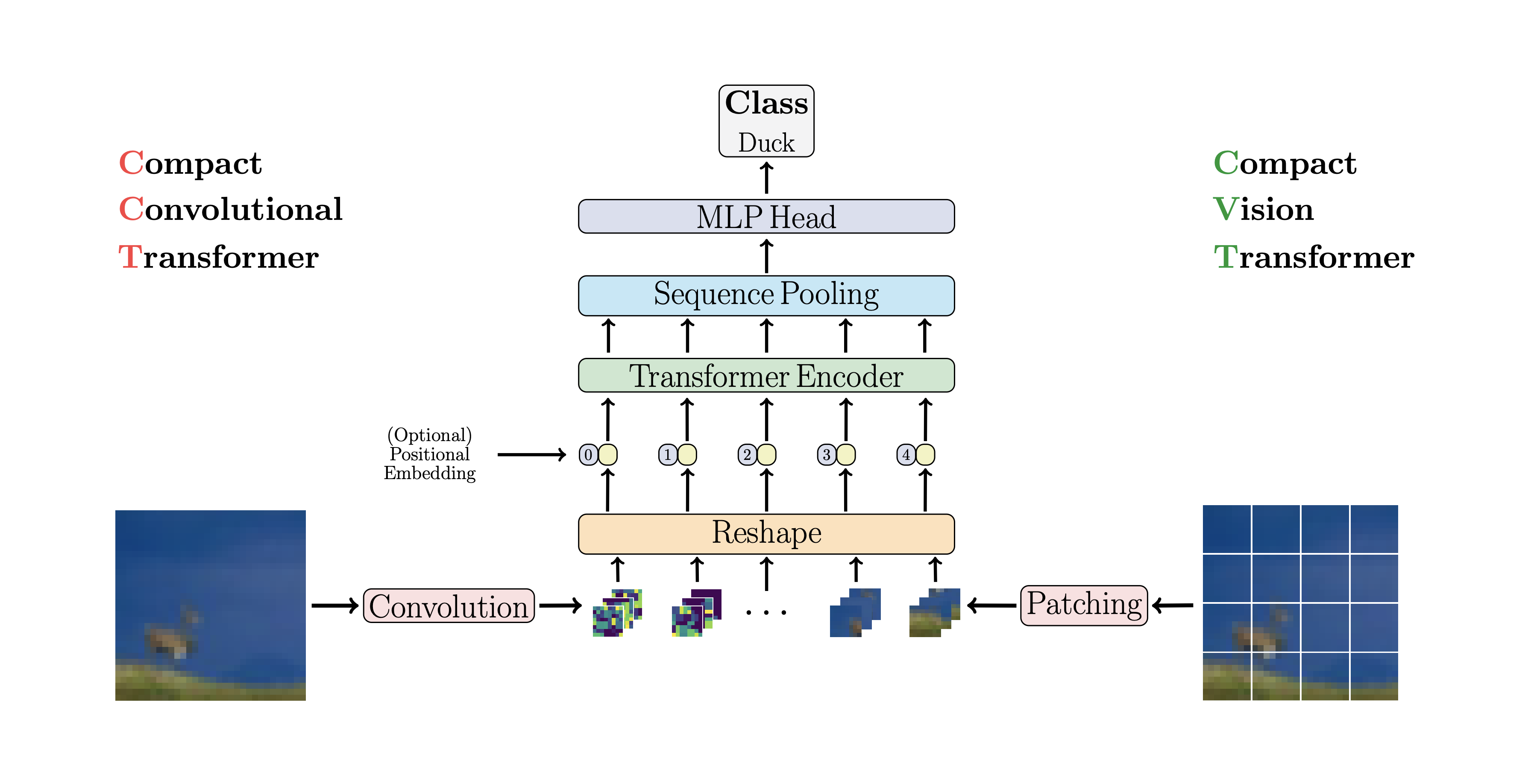

CCT

CCT proposes compact transformers by using convolutions instead of patching and performing sequence pooling. This allows for CCT to have high accuracy and a low number of parameters.

You can use this with two methods

import torch
from vit_pytorch.cct import CCT

cct = CCT(
    img_size = (224, 448),
    embedding_dim = 384,
    n_conv_layers = 2,
    kernel_size = 7,
    stride = 2,
    padding = 3,
    pooling_kernel_size = 3,
    pooling_stride = 2,
    pooling_padding = 1,
    num_layers = 14,
    num_heads = 6,
    mlp_ratio = 3.,
    num_classes = 1000,
    positional_embedding = 'learnable', # ['sine', 'learnable', 'none']
)
img = torch.randn(1, 3, 224, 448)
pred = cct(img) # (1, 1000)

Alternatively you can use one of several pre-defined models [2,4,6,7,8,14,16] which pre-define the number of layers, number of attention heads, the mlp ratio, and the embedding dimension.

import torch
from vit_pytorch.cct import cct_14
cct = cct_14(
    img_size = 224,
    n_conv_layers = 1,
    kernel_size = 7,
    stride = 2,
    padding = 3,
    pooling_kernel_size = 3,
    pooling_stride = 2,
    pooling_padding = 1,
    num_classes = 1000,
    positional_embedding = 'learnable', # ['sine', 'learnable', 'none']
)

Official Repository includes links to pretrained model checkpoints.

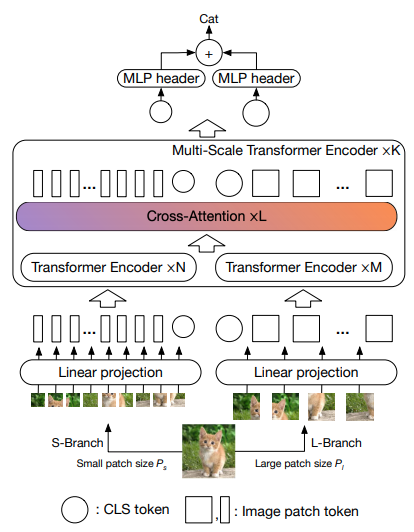

Cross ViT

This paper proposes to have two vision transformers processing the image at different scales, cross attending to one every so often. They show improvements on top of the base vision transformer.

import torch
from vit_pytorch.cross_vit import CrossViT
v = CrossViT(
    image_size = 256,
    num_classes = 1000,
    depth = 4,               # number of multi-scale encoding blocks
    sm_dim = 192,            # high res dimension
    sm_patch_size = 16,      # high res patch size (should be smaller than lg_patch_size)
    sm_enc_depth = 2,        # high res depth
    sm_enc_heads = 8,        # high res heads
    sm_enc_mlp_dim = 2048,   # high res feedforward dimension
    lg_dim = 384,            # low res dimension
    lg_patch_size = 64,      # low res patch size
    lg_enc_depth = 3,        # low res depth
    lg_enc_heads = 8,        # low res heads
    lg_enc_mlp_dim = 2048,   # low res feedforward dimensions
    cross_attn_depth = 2,    # cross attention rounds
    cross_attn_heads = 8,    # cross attention heads
    dropout = 0.1,
    emb_dropout = 0.1
)
img = torch.randn(1, 3, 256, 256)
pred = v(img) # (1, 1000)

PiT

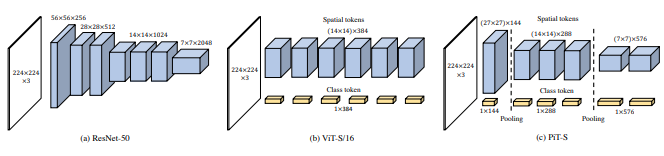

This paper proposes to downsample the tokens through a pooling procedure using depth-wise convolutions.

import torch
from vit_pytorch.pit import PiT
v = PiT(
    image_size = 224,
    patch_size = 14,
    dim = 256,
    num_classes = 1000,
    depth = (3, 3, 3),     # list of depths, indicating the number of rounds of each stage before a downsample
    heads = 16,
    mlp_dim = 2048,
    dropout = 0.1,
    emb_dropout = 0.1
)
forward pass now returns predictions and the attention maps
img = torch.randn(1, 3, 224, 224)
preds = v(img) # (1, 1000)

LeViT

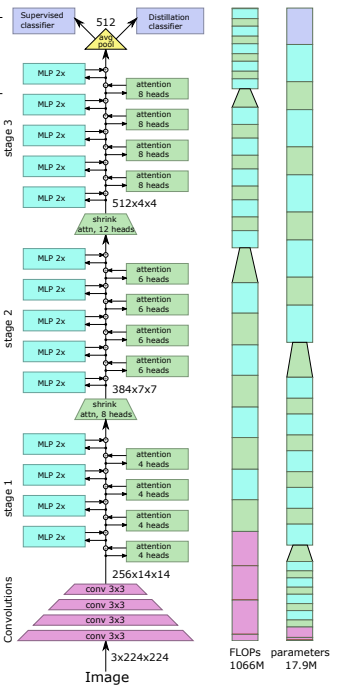

This paper proposes a number of changes, including (1) convolutional embedding instead of patch-wise projection (2) downsampling in stages (3) extra non-linearity in attention (4) 2d relative positional biases instead of initial absolute positional bias (5) batchnorm in place of layernorm.

Official repository

import torch
from vit_pytorch.levit import LeViT
levit = LeViT(
    image_size = 224,
    num_classes = 1000,
    stages = 3,             # number of stages
    dim = (256, 384, 512),  # dimensions at each stage
    depth = 4,              # transformer of depth 4 at each stage
    heads = (4, 6, 8),      # heads at each stage
    mlp_mult = 2,
    dropout = 0.1
)
img = torch.randn(1, 3, 224, 224)
levit(img) # (1, 1000)

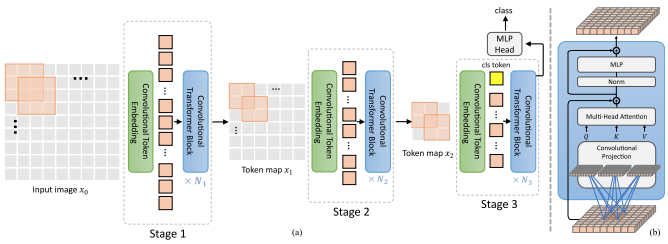

CvT

This paper proposes mixing convolutions and attention. Specifically, convolutions are used to embed and downsample the image / feature map in three stages. Depthwise-convoltion is also used to project the queries, keys, and values for attention.

import torch
from vit_pytorch.cvt import CvT
v = CvT(
    num_classes = 1000,
    s1_emb_dim = 64,        # stage 1 - dimension
    s1_emb_kernel = 7,      # stage 1 - conv kernel
    s1_emb_stride = 4,      # stage 1 - conv stride
    s1_proj_kernel = 3,     # stage 1 - attention ds-conv kernel size
    s1_kv_proj_stride = 2,  # stage 1 - attention key / value projection stride
    s1_heads = 1,           # stage 1 - heads
    s1_depth = 1,           # stage 1 - depth
    s1_mlp_mult = 4,        # stage 1 - feedforward expansion factor
    s2_emb_dim = 192,       # stage 2 - (same as above)
    s2_emb_kernel = 3,
    s2_emb_stride = 2,
    s2_proj_kernel = 3,
    s2_kv_proj_stride = 2,
    s2_heads = 3,
    s2_depth = 2,
    s2_mlp_mult = 4,
    s3_emb_dim = 384,       # stage 3 - (same as above)
    s3_emb_kernel = 3,
    s3_emb_stride = 2,
    s3_proj_kernel = 3,
    s3_kv_proj_stride = 2,
    s3_heads = 4,
    s3_depth = 10,
    s3_mlp_mult = 4,
    dropout = 0.
)
img = torch.randn(1, 3, 224, 224)
pred = v(img) # (1, 1000)

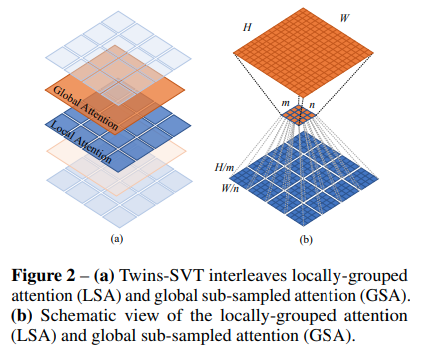

Twins SVT

This paper proposes mixing local and global attention, along with position encoding generator (proposed in CPVT) and global average pooling, to achieve the same results as Swin, without the extra complexity of shifted windows, CLS tokens, nor positional embeddings.

import torch
from vit_pytorch.twins_svt import TwinsSVT
model = TwinsSVT(
    num_classes = 1000,       # number of output classes
    s1_emb_dim = 64,          # stage 1 - patch embedding projected dimension
    s1_patch_size = 4,        # stage 1 - patch size for patch embedding
    s1_local_patch_size = 7,  # stage 1 - patch size for local attention
    s1_global_k = 7,          # stage 1 - global attention key / value reduction factor, defaults to 7 as specified in paper
    s1_depth = 1,             # stage 1 - number of transformer blocks (local attn -> ff -> global attn -> ff)
    s2_emb_dim = 128,         # stage 2 (same as above)
    s2_patch_size = 2,
    s2_local_patch_size = 7,
    s2_global_k = 7,
    s2_depth = 1,
    s3_emb_dim = 256,         # stage 3 (same as above)
    s3_patch_size = 2,
    s3_local_patch_size = 7,
    s3_global_k = 7,
    s3_depth = 5,
    s4_emb_dim = 512,         # stage 4 (same as above)
    s4_patch_size = 2,
    s4_local_patch_size = 7,
    s4_global_k = 7,
    s4_depth = 4,
    peg_kernel_size = 3,      # positional encoding generator kernel size
    dropout = 0.              # dropout
)
img = torch.randn(1, 3, 224, 224)
pred = model(img) # (1, 1000)

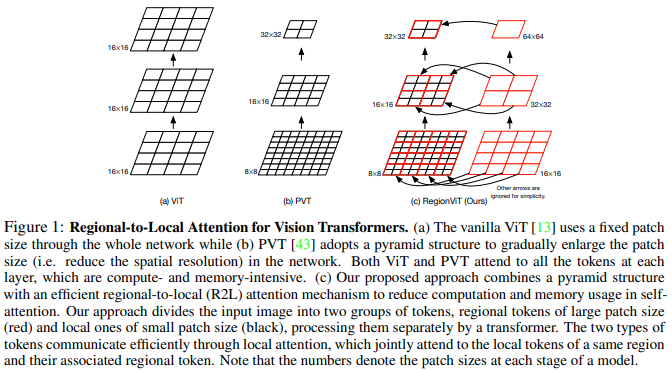

RegionViT

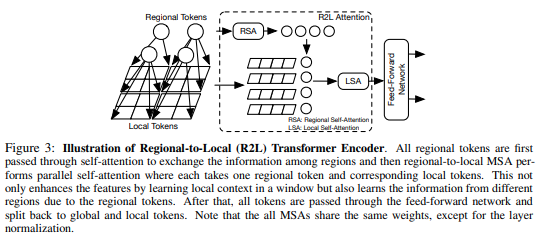

This paper proposes to divide up the feature map into local regions, whereby the local tokens attend to each other. Each local region has its own regional token which then attends to all its local tokens, as well as other regional tokens.

You can use it as follows

import torch
from vit_pytorch.regionvit import RegionViT
model = RegionViT(
    dim = (64, 128, 256, 512),      # tuple of size 4, indicating dimension at each stage
    depth = (2, 2, 8, 2),           # depth of the region to local transformer at each stage
    window_size = 7,                # window size, which should be either 7 or 14
    num_classes = 1000,             # number of output classes
    tokenize_local_3_conv = False,  # whether to use a 3 layer convolution to encode the local tokens from the image. the paper uses this for the smaller models, but uses only 1 conv (set to False) for the larger models
    use_peg = False,                # whether to use positional generating module. they used this for object detection for a boost in performance
)
img = torch.randn(1, 3, 224, 224)
pred = model(img) # (1, 1000)

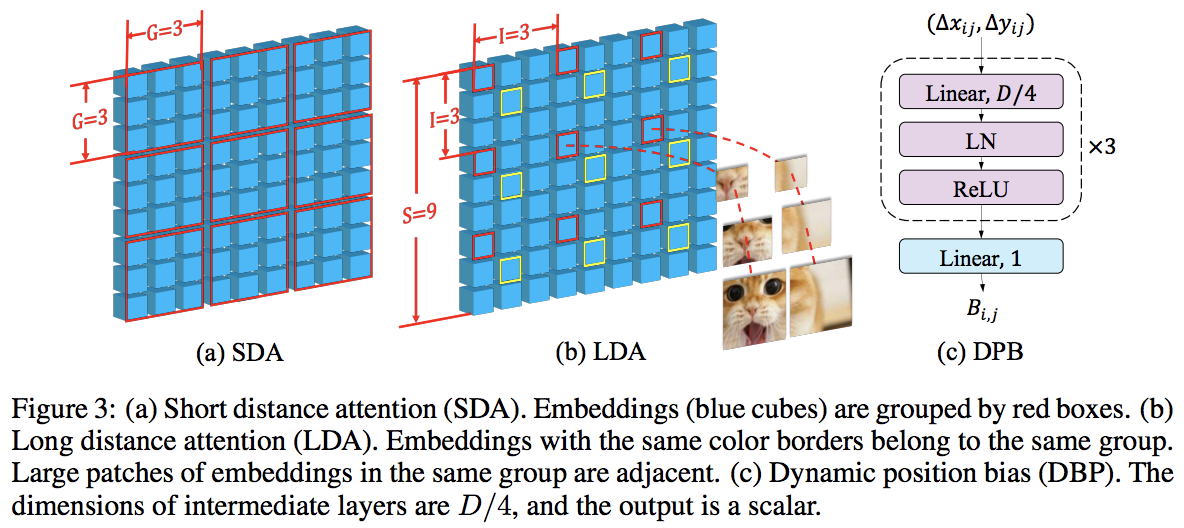

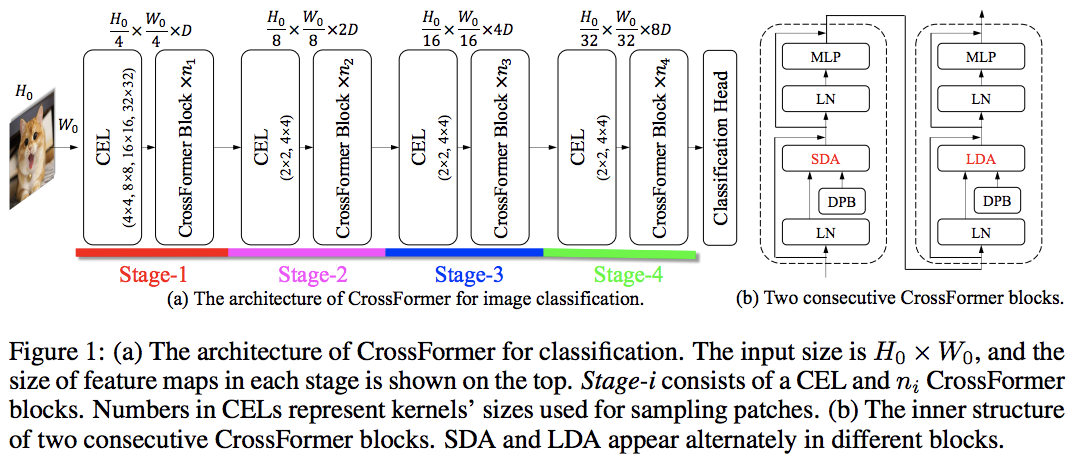

CrossFormer

This paper beats PVT and Swin using alternating local and global attention. The global attention is done across the windowing dimension for reduced complexity, much like the scheme used for axial attention.

They also have cross-scale embedding layer, which they shown to be a generic layer that can improve all vision transformers. Dynamic relative positional bias was also formulated to allow the net to generalize to images of greater resolution.

import torch
from vit_pytorch.crossformer import CrossFormer
model = CrossFormer(
    num_classes = 1000,                # number of output classes
    dim = (64, 128, 256, 512),         # dimension at each stage
    depth = (2, 2, 8, 2),              # depth of transformer at each stage
    global_window_size = (8, 4, 2, 1), # global window sizes at each stage
    local_window_size = 7,             # local window size (can be customized for each stage, but in paper, held constant at 7 for all stages)
)
img = torch.randn(1, 3, 224, 224)
pred = model(img) # (1, 1000)

ScalableViT

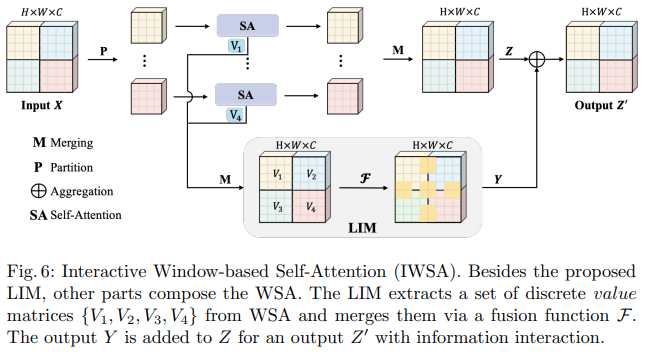

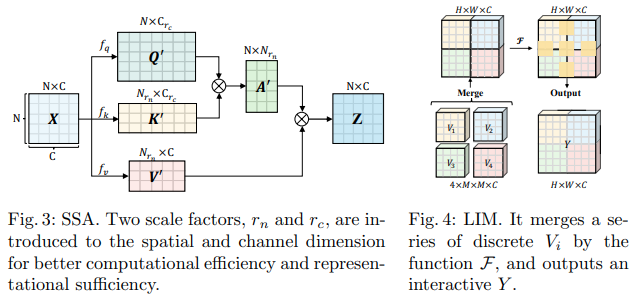

This Bytedance AI paper proposes the Scalable Self Attention (SSA) and the Interactive Windowed Self Attention (IWSA) modules. The SSA alleviates the computation needed at earlier stages by reducing the key / value feature map by some factor (reduction_factor), while modulating the dimension of the queries and keys (ssa_dim_key). The IWSA performs self attention within local windows, similar to other vision transformer papers. However, they add a residual of the values, passed through a convolution of kernel size 3, which they named Local Interactive Module (LIM).

They make the claim in this paper that this scheme outperforms Swin Transformer, and also demonstrate competitive performance against Crossformer.

You can use it as follows (ex. ScalableViT-S)
