What is frp?

frp is a fast reverse proxy that allows you to expose a local server located behind a NAT or firewall to the Internet. It currently supports TCP and UDP, as well as HTTP and HTTPS protocols, enabling requests to be forwarded to internal services via domain name.

frp also offers a P2P connect mode.

Table of Contents

• Development Status
• About V2
• Architecture
• Example Usage
• Access your computer in a LAN network via SSH
• Multiple SSH services sharing the same port
• Accessing Internal Web Services with Custom Domains in LAN
• Forward DNS query requests
• Forward Unix Domain Socket
• Expose a simple HTTP file server
• Enable HTTPS for a local HTTP(S) service
• Expose your service privately
• P2P Mode
• Features
• Configuration Files
• Using Environment Variables
• Split Configures Into Different Files
• Server Dashboard
• Client Admin UI
• Dynamic Proxy Management (Store)
• Monitor
• Prometheus
• Authenticating the Client
• Token Authentication
• OIDC Authentication
• Encryption and Compression
• TLS
• Hot-Reloading frpc configuration
• Get proxy status from client
• Only allowing certain ports on the server
• Port Reuse
• Bandwidth Limit
• For Each Proxy
• TCP Stream Multiplexing
• Support KCP Protocol
• Support QUIC Protocol
• Connection Pooling
• Load balancing
• Service Health Check
• Rewriting the HTTP Host Header
• Setting other HTTP Headers
• Get Real IP
• HTTP X-Forwarded-For
• Proxy Protocol
• Require HTTP Basic Auth (Password) for Web Services
• Custom Subdomain Names
• URL Routing
• TCP Port Multiplexing
• Connecting to frps via PROXY
• Port range mapping
• Client Plugins
• Server Manage Plugins
• SSH Tunnel Gateway
• Virtual Network (VirtualNet)
• Feature Gates
• Available Feature Gates
• Enabling Feature Gates
• Feature Lifecycle
• Related Projects
• Contributing
• Donation
• GitHub Sponsors
• PayPal

Development Status

frp is currently under development. You can try the latest release version in the master branch, or use the dev branch to access the version currently in development.

We are currently working on version 2 and attempting to perform some code refactoring and improvements. However, please note that it will not be compatible with version 1.

We will transition from version 0 to version 1 at the appropriate time and will only accept bug fixes and improvements, rather than big feature requests.

About V2

The complexity and difficulty of the v2 version are much higher than anticipated. I can only work on its development during fragmented time periods, and the constant interruptions disrupt productivity significantly. Given this situation, we will continue to optimize and iterate on the current version until we have more free time to proceed with the major version overhaul.

The concept behind v2 is based on my years of experience and reflection in the cloud-native domain, particularly in K8s and ServiceMesh. Its core is a modernized four-layer and seven-layer proxy, similar to envoy. This proxy itself is highly scalable, not only capable of implementing the functionality of intranet penetration but also applicable to various other domains. Building upon this highly scalable core, we aim to implement all the capabilities of frp v1 while also addressing the functionalities that were previously unachievable or difficult to implement in an elegant manner. Furthermore, we will maintain efficient development and iteration capabilities.

In addition, I envision frp itself becoming a highly extensible system and platform, similar to how we can provide a range of extension capabilities based on K8s. In K8s, we can customize development according to enterprise needs, utilizing features such as CRD, controller mode, webhook, CSI, and CNI. In frp v1, we introduced the concept of server plugins, which implemented some basic extensibility. However, it relies on a simple HTTP protocol and requires users to start independent processes and manage them on their own. This approach is far from flexible and convenient, and real-world demands vary greatly. It is unrealistic to expect a non-profit open-source project maintained by a few individuals to meet everyone's needs.

Finally, we acknowledge that the current design of modules such as configuration management, permission verification, certificate management, and API management is not modern enough. While we may carry out some optimizations in the v1 version, ensuring compatibility remains a challenging issue that requires a considerable amount of effort to address.

We sincerely appreciate your support for frp.

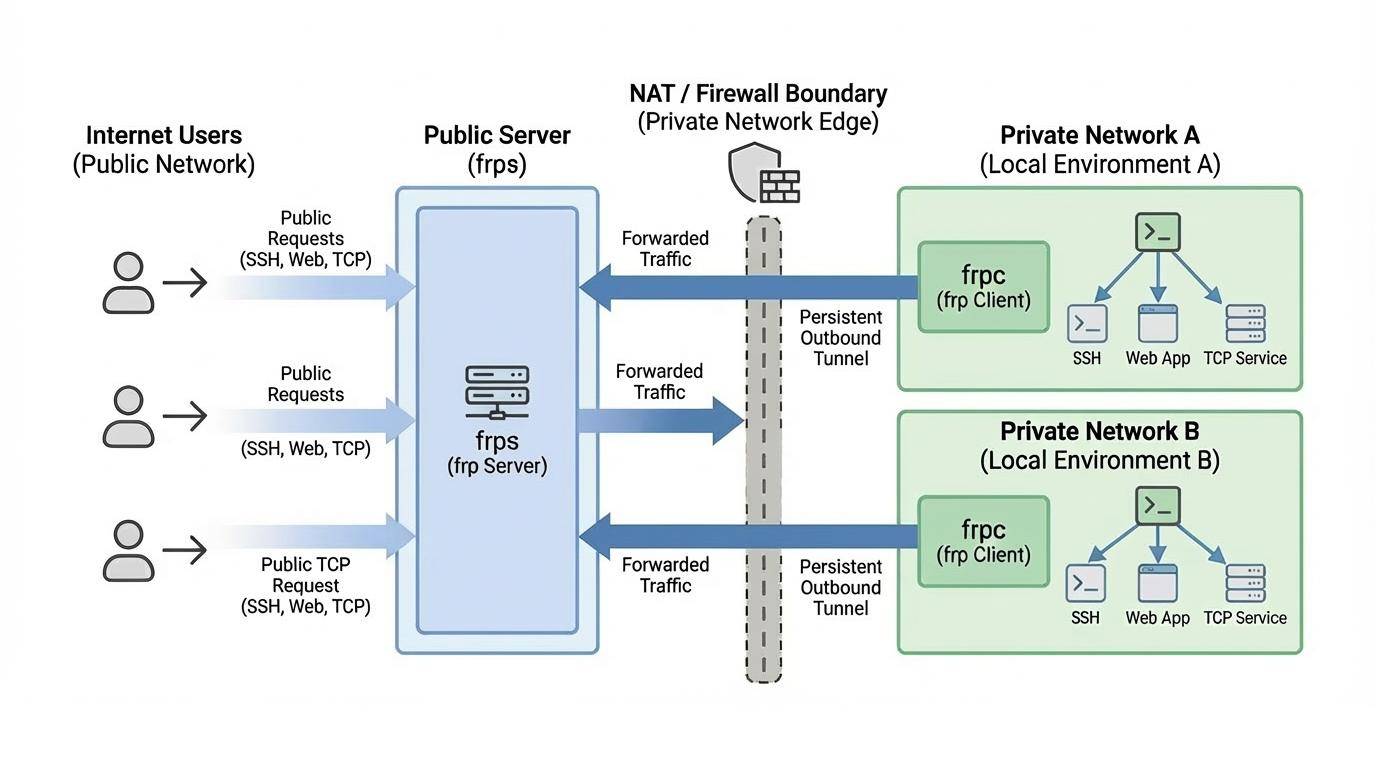

Architecture

Example Usage

To begin, download the latest program for your operating system and architecture from the Release page.

Next, place the frps binary and server configuration file on Server A, which has a public IP address.

Finally, place the frpc binary and client configuration file on Server B, which is located on a LAN that cannot be directly accessed from the public internet.

Some antiviruses improperly mark frpc as malware and delete it. This is due to frp being a networking tool capable of creating reverse proxies. Antiviruses sometimes flag reverse proxies due to their ability to bypass firewall port restrictions. If you are using antivirus, then you may need to whitelist/exclude frpc in your antivirus settings to avoid accidental quarantine/deletion. See issue 3637 for more details.

Access your computer in a LAN network via SSH

1. Modify frps.toml on server A by setting the bindPort for frp clients to connect to:

  # frps.toml
  bindPort = 7000


2. Start frps on server A:

./frps -c ./frps.toml

3. Modify frpc.toml on server B and set the serverAddr field to the public IP address of your frps server:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "ssh"
  type = "tcp"
  localIP = "127.0.0.1"
  localPort = 22
  remotePort = 6000


Note that the localPort (listened on the client) and remotePort (exposed on the server) are used for traffic going in and out of the frp system, while the serverPort is used for communication between frps and frpc.

4. Start frpc on server B:

./frpc -c ./frpc.toml

5. To access server B from another machine through server A via SSH (assuming the username is test), use the following command:

ssh -oPort=6000 [email protected]

Multiple SSH services sharing the same port

This example implements multiple SSH services exposed through the same port using a proxy of type tcpmux. Similarly, as long as the client supports the HTTP Connect proxy connection method, port reuse can be achieved in this way.

1. Deploy frps on a machine with a public IP and modify the frps.toml file. Here is a simplified configuration:

  bindPort = 7000
  tcpmuxHTTPConnectPort = 5002


2. Deploy frpc on the internal machine A with the following configuration:

  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "ssh1"
  type = "tcpmux"
  multiplexer = "httpconnect"
  customDomains = ["machine-a.example.com"]
  localIP = "127.0.0.1"
  localPort = 22


3. Deploy another frpc on the internal machine B with the following configuration:

  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "ssh2"
  type = "tcpmux"
  multiplexer = "httpconnect"
  customDomains = ["machine-b.example.com"]
  localIP = "127.0.0.1"
  localPort = 22


4. To access internal machine A using SSH ProxyCommand, assuming the username is "test":

ssh -o 'proxycommand socat - PROXY:x.x.x.x:%h:%p,proxyport=5002' [email protected]

5. To access internal machine B, the only difference is the domain name, assuming the username is "test":

ssh -o 'proxycommand socat - PROXY:x.x.x.x:%h:%p,proxyport=5002' [email protected]

Accessing Internal Web Services with Custom Domains in LAN

Sometimes we need to expose a local web service behind a NAT network to others for testing purposes with our own domain name.

Unfortunately, we cannot resolve a domain name to a local IP. However, we can use frp to expose an HTTP(S) service.

1. Modify frps.toml and set the HTTP port for vhost to 8080:

  # frps.toml
  bindPort = 7000
  vhostHTTPPort = 8080


If you want to configure an https proxy, you need to set up the vhostHTTPSPort.

2. Start frps:

./frps -c ./frps.toml

3. Modify frpc.toml and set serverAddr to the IP address of the remote frps server. Specify the localPort of your web service:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "web"
  type = "http"
  localPort = 80
  customDomains = ["www.example.com"]


4. Start frpc:

./frpc -c ./frpc.toml

5. Map the A record of www.example.com to either the public IP of the remote frps server or a CNAME record pointing to your original domain.

6. Visit your local web service using url http://www.example.com:8080.

Forward DNS query requests

1. Modify frps.toml:

  # frps.toml
  bindPort = 7000


2. Start frps:

./frps -c ./frps.toml

3. Modify frpc.toml and set serverAddr to the IP address of the remote frps server. Forward DNS query requests to the Google Public DNS server 8.8.8.8:53:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "dns"
  type = "udp"
  localIP = "8.8.8.8"
  localPort = 53
  remotePort = 6000


4. Start frpc:

./frpc -c ./frpc.toml

5. Test DNS resolution using the dig command:

dig @x.x.x.x -p 6000 www.google.com

Forward Unix Domain Socket

Expose a Unix domain socket (e.g. the Docker daemon socket) as TCP.

Configure frps as above.

1. Start frpc with the following configuration:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "unix_domain_socket"
  type = "tcp"
  remotePort = 6000
  [proxies.plugin]
  type = "unix_domain_socket"
  unixPath = "/var/run/docker.sock"


2. Test the configuration by getting the docker version using curl:

curl http://x.x.x.x:6000/version

Expose a simple HTTP file server

Expose a simple HTTP file server to access files stored in the LAN from the public Internet.

Configure frps as described above, then:

1. Start frpc with the following configuration:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "test_static_file"
  type = "tcp"
  remotePort = 6000
  [proxies.plugin]
  type = "static_file"
  localPath = "/tmp/files"
  stripPrefix = "static"
  httpUser = "abc"
  httpPassword = "abc"


2. Visit http://x.x.x.x:6000/static/ from your browser and specify correct username and password to view files in /tmp/files on the frpc machine.

Enable HTTPS for a local HTTP(S) service

You may substitute https2https for the plugin, and point the localAddr to a HTTPS endpoint.

1. Start frpc with the following configuration:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "test_https2http"
  type = "https"
  customDomains = ["test.example.com"]
[proxies.plugin]
  type = "https2http"
  localAddr = "127.0.0.1:80"
  crtPath = "./server.crt"
  keyPath = "./server.key"
  hostHeaderRewrite = "127.0.0.1"
  requestHeaders.set.x-from-where = "frp"


2. Visit https://test.example.com.

Expose your service privately

To mitigate risks associated with exposing certain services directly to the public network, STCP (Secret TCP) mode requires a preshared key to be used for access to the service from other clients.

Configure frps same as above.

1. Start frpc on machine B with the following config. This example is for exposing the SSH service (port 22), and note the secretKey field for the preshared key, and that the remotePort field is removed here:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[proxies]]
  name = "secret_ssh"
  type = "stcp"
  secretKey = "abcdefg"
  localIP = "127.0.0.1"
  localPort = 22


2. Start another frpc (typically on another machine C) with the following config to access the SSH service with a security key (secretKey field):

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
[[visitors]]
  name = "secret_ssh_visitor"
  type = "stcp"
  serverName = "secret_ssh"
  secretKey = "abcdefg"
  bindAddr = "127.0.0.1"
  bindPort = 6000


3. On machine C, connect to SSH on machine B, using this command:

ssh -oPort=6000 127.0.0.1

P2P Mode

xtcp is designed to transmit large amounts of data directly between clients. A frps server is still needed, as P2P here only refers to the actual data transmission.

Note that it may not work with all types of NAT devices. You might want to fallback to stcp if xtcp doesn't work.

1. Start frpc on machine B, and expose the SSH port. Note that the remotePort field is removed:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
  # set up a new stun server if the default one is not available.
  # natHoleStunServer = "xxx"
[[proxies]]
  name = "p2p_ssh"
  type = "xtcp"
  secretKey = "abcdefg"
  localIP = "127.0.0.1"
  localPort = 22


2. Start another frpc (typically on another machine C) with the configuration to connect to SSH using P2P mode:

  # frpc.toml
  serverAddr = "x.x.x.x"
  serverPort = 7000
  # set up a new stun server if the default one is not available.
  # natHoleStunServer = "xxx"
[[visitors]]
  name = "p2p_ssh_visitor"
  type = "xtcp"
  serverName = "p2p_ssh"
  secretKey = "abcdefg"
  bindAddr = "127.0.0.1"
  bindPort = 6000
  # when automatic tunnel persistence is required, set it to true
  keepTunnelOpen = false


3. On machine C, connect to SSH on machine B, using this command:

ssh -oPort=6000 127.0.0.1

Features

Configuration Files

Since v0.52.0, we support TOML, YAML, and JSON for configuration. Please note that INI is deprecated and will be removed in future releases. New features will only be available in TOML, YAML, or JSON. Users wanting these new features should switch their configuration format accordingly.

Read the full example configuration files to find out even more features not described here.

Examples use TOML format, but you can still use YAML or JSON.

These configuration files is for reference only. Please do not use this configuration directly to run the program as it may have various issues.

Full configuration file for frps (Server)

Full configuration file for frpc (Client)

Using Environment Variables

Environment variables can be referenced in the configuration file, using Go's standard format:

# frpc.toml
serverAddr = "{{ .Envs.FRP_SERVER_ADDR }}"
serverPort = 7000
[[proxies]]
name = "ssh"
type = "tcp"
localIP = "127.0.0.1"
localPort = 22
remotePort = {{ .Envs.FRP_SSH_REMOTE_PORT }}

With the config above, variables can be passed into frpc program like this:

export FRP_SERVER_ADDR=x.x.x.x
export FRP_SSH_REMOTE_PORT=6000
./frpc -c ./frpc.toml

frpc will render configuration file template using OS environment variables. Remember to prefix your reference with .Envs.

Split Configures Into Different Files

You can split multiple proxy configs into different files and include them in the main file.

# frpc.toml
serverAddr = "x.x.x.x"
serverPort = 7000
includes = ["./confd/*.toml"]

# ./confd/test.toml
[[proxies]]
name = "ssh"
type = "tcp"
localIP = "127.0.0.1"
localPort = 22
remotePort = 6000

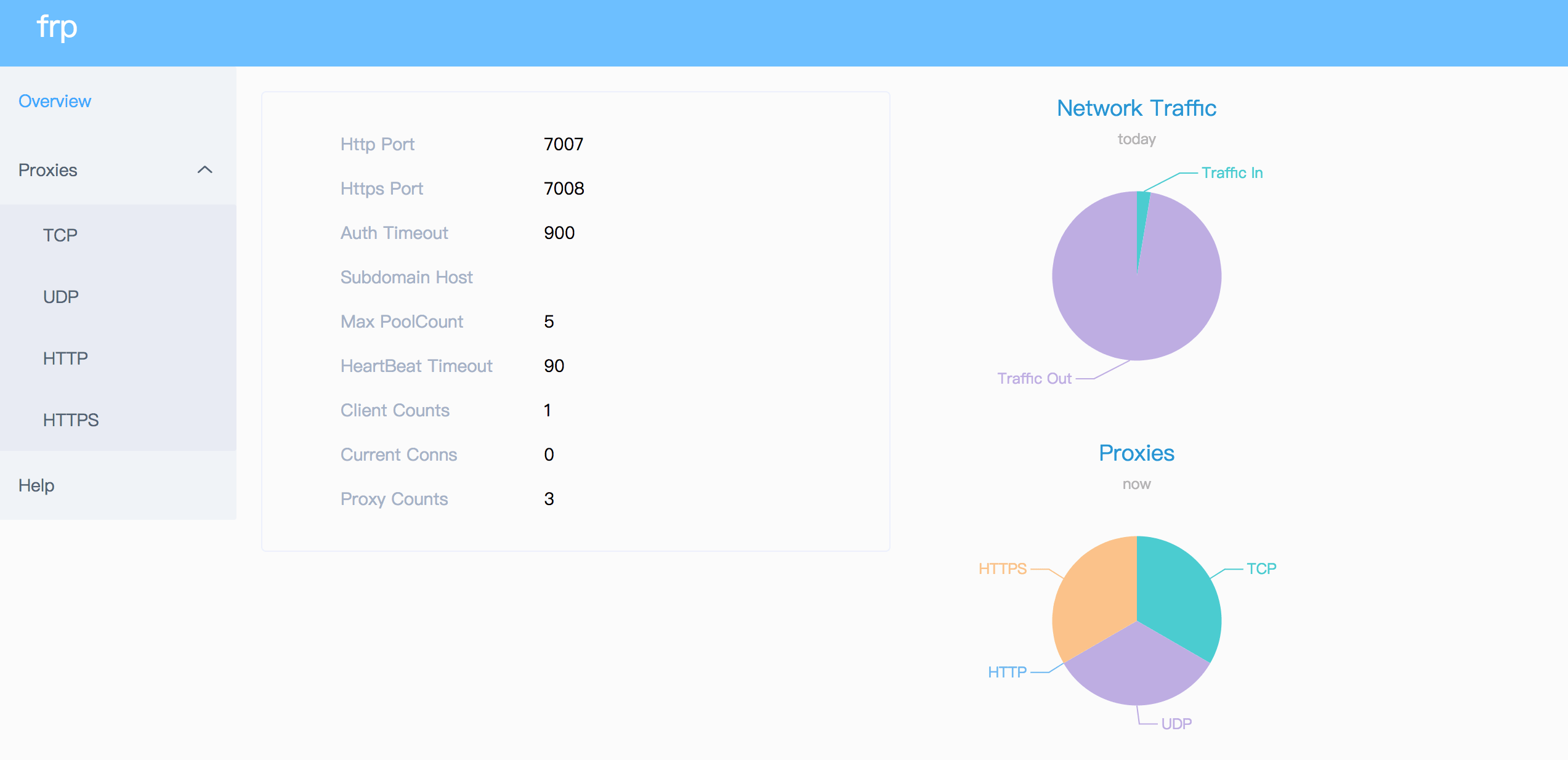

Server Dashboard

Check frp's status and proxies' statistics information by Dashboard.

Configure a port for dashboard to enable this feature:

# The default value is 127.0.0.1. Change it to 0.0.0.0 when you want to access it from a public network.
webServer.addr = "0.0.0.0"
webServer.port = 7500
dashboard's username and password are both optional
webServer.user = "admin"
webServer.password = "admin"

Then visit http://[serverAddr]:7500 to see the dashboard, with username and password both being admin.

Additionally, you can use HTTPS port by using your domains wildcard or normal SSL certificate:

webServer.port = 7500
dashboard's username and password are both optional
webServer.user = "admin"
webServer.password = "admin"
webServer.tls.certFile = "server.crt"
webServer.tls.keyFile = "server.key"

Then visit https://[serverAddr]:7500 to see the dashboard in secure HTTPS connection, with username and password both being admin.

Client Admin UI

The Client Admin UI helps you check and manage frpc's configuration and proxies.

Configure an address for admin UI to enable this feature:

webServer.addr = "127.0.0.1"
webServer.port = 7400
webServer.user = "admin"
webServer.password = "admin"

Then visit http://127.0.0.1:7400 to see admin UI, with username and password both being admin.

Dynamic Proxy Management (Store)

You can dynamically create, update, and delete proxies and visitors at runtime through the Web UI or API, without restarting frpc.

To enable this feature, configure store.path to specify a file for persisting the configurations:

[store]
path = "./db.json"

Proxies and visitors managed through the Store are saved to disk and automatically restored on frpc restart. They work alongside proxies defined in the configuration file — Store entries take precedence when names conflict.

Monitor

When web server is enabled, frps will save monitor data in cache for 7 days. It will be cleared after process restart.

Both frps and frpc support a separate metricsServer listener for health checks and optional profiling, without enabling the dashboard or admin API. It is disabled by default (metricsServer.port = 0) and binds to 127.0.0.1 unless configured otherwise.

/healthz returns an empty HTTP 200 response without authentication. It checks that the HTTP server is responding; it does not indicate whether frpc is connected to frps or whether proxies are ready.

Prometheus

Configure a dedicated listener in frps.toml:

metricsServer.addr = "127.0.0.1"
metricsServer.port = 7501
metricsServer.user = "monitor"
metricsServer.password = "change-me"
Optional TLS, independent of webServer:
metricsServer.tls.certFile = "metrics.crt"
metricsServer.tls.keyFile = "metrics.key"
Profiling is disabled unless explicitly enabled:
metricsServer.pprofEnable = true

Scrape http://127.0.0.1:7501/metrics using these Basic Auth credentials. This automatically enables frps business metrics, even when webServer is disabled and enablePrometheus is unset. Credentials and TLS are independent of webServer; when credentials are configured, both /metrics and profiling endpoints require authentication. /healthz remains anonymous.

Set metricsServer.pprofEnable = true to expose /debug/pprof/ and profiling endpoints on this listener. /debug/pprof/cmdline is excluded. frpc serves /metrics on this listener too, with Go runtime metrics only: no proxy, traffic or client data, and the same set of metrics on every platform.

The /healthz, /metrics, and pprof endpoints on webServer are deprecated but remain available. enablePrometheus = true still enables the legacy frps /metrics endpoint on the dashboard listener. Migrate health probes, Prometheus scrapes, and profiling to metricsServer; the dashboard and admin APIs continue to use webServer.

Authenticating the Client

There are 2 authentication methods to authenticate frpc with frps.

You can decide which one to use by configuring auth.method in frpc.toml and frps.toml, the default one is token.

Configuring auth.additionalScopes = ["HeartBeats"] will use the configured authentication method to add and validate authentication on every heartbeat between frpc a
