CubeSandbox

Instant, Concurrent, Secure & Lightweight Sandbox Service for AI Agents

中文文档 · Quick Start · Documentation · Changelog · X(Twitter) · Top Contributor Program · Submit Use Case

---

Cube Sandbox is a high-performance, out-of-the-box secure sandbox service built on RustVMM and KVM. It supports both single-node deployment and easy scaling to multi-node clusters. It is compatible with the E2B SDK and can create a hardware-isolated, fully serviceable sandbox in under 60ms with less than 5MB of memory overhead.

📰 News

	v0.7: Cross-node pause/resume, control plane & ops separation, faster sandbox networking Cross-node pause/resume — with an S3 backend, suspend a sandbox on one node and resume it on another, or create sandboxes from snapshots (preview) Control plane & operations separation — node management moves into CubeOps with multi-replica deployment and the new cubeopscli Changelog →
	v0.6: K8s deploy, Volume framework, template aliases K8s deploy — Deploy Cube control-plane components and compute nodes on Kubernetes Volume framework — E2B-compatible Volume framework that lets users plug in custom backend storage Template aliases — Set an alias when creating a template, and create sandboxes by specifying that alias. Changelog → · K8s deploy → · Volume plugin →
	v0.5: AutoPause, Terraform deployer, ARM64 & network policy hardening AutoPause/AutoResume — idle sandboxes auto-suspend and wake on the next request. Terraform one-click cluster deploy ARM64 native full-stack support network policy hardening — per-sandbox traffic tokens, policy-routing egress. Changelog → · Terraform deploy →
	v0.4: Safer egress, easier ops Credential vault — Agents call external APIs as usual; keys never enter the sandbox. Dashboard — version matrix and template health checks; see at a glance whether templates need rebuilding after upgrades. Changelog → · Security proxy guide → · WebUI guide →
	Snapshot, Clone & Rollback at hundred-millisecond granularity CubeSandbox 0.3.0 introduces the CubeCoW Copy-on-Write snapshot engine, enabling event-level snapshots, instant cloning, and rollback to any saved state. Changelog →
	🎉 Initial open-source release Cube Sandbox is now open source! Millisecond boot, hardware-level isolation, E2B-compatible sandbox for AI Agents. Changelog →

Product Highlights

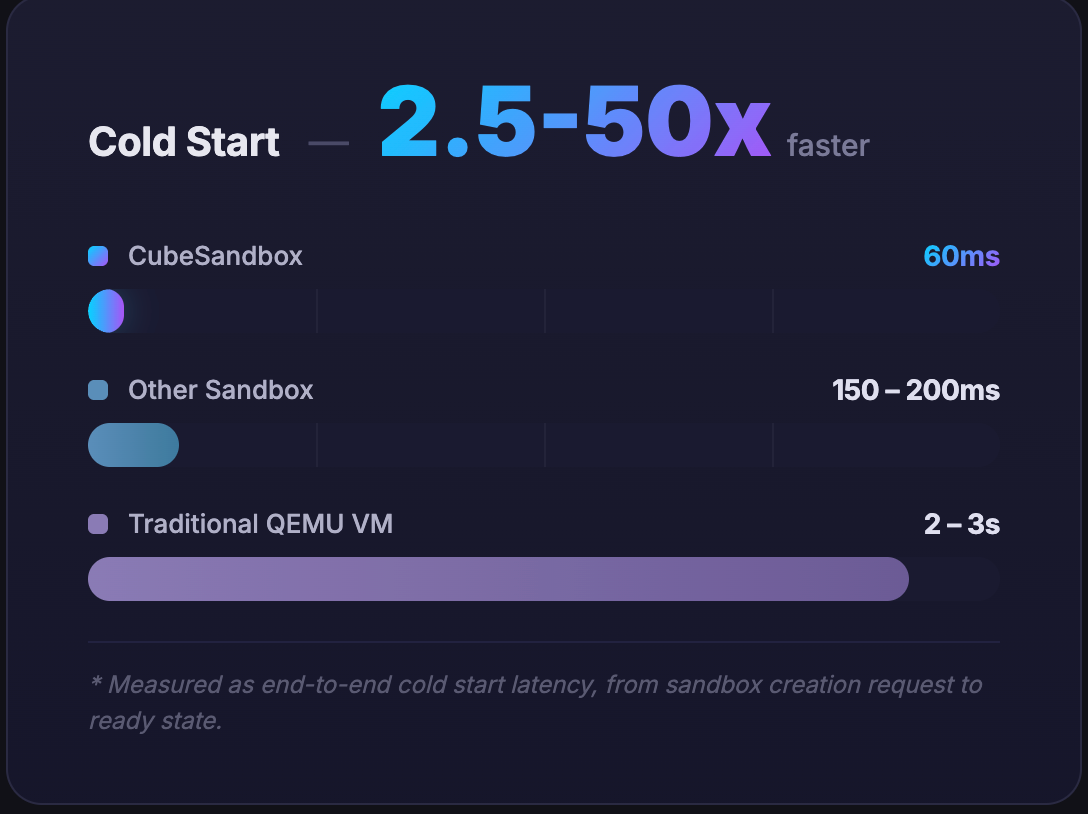

⚡ Ultra-fast Startup Resource pooling and snapshot cloning skip all cold-start overhead. Average <60ms cold start — sandbox creation faster than a blink. Quick start →	🔒 Hardware Isolation Every sandbox runs a dedicated OS kernel in its own MicroVM. Architecture →	🔌 E2B SDK Compatible Compatible with E2B SDK interface. Switch from E2B Cloud seamlessly by changing one environment variable — zero client code changes. Examples →

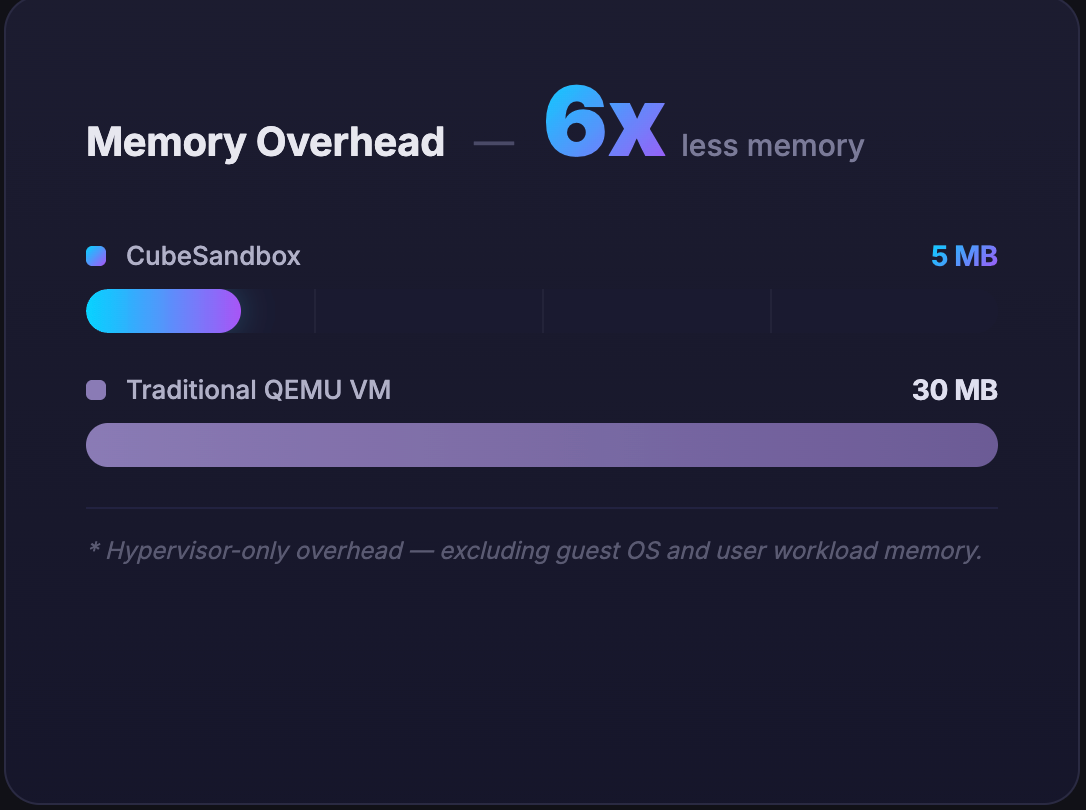

📦 High-density Deployment <5MB overhead per sandbox enables thousands of instances per server via kernel sharing and Copy-on-Write (CoW). Supports automatic sandbox pause and resume, further improving deployment density and cost optimization. Quick start →	🛡️ Network Security eBPF-based inter-sandbox isolation and egress filtering at kernel level; built-in L7 security proxy enables per-domain/path/method policies with automatic credential injection — secrets never visible to sandbox code. Security proxy guide →	📸 Flexible State Management High-frequency snapshot and rollback at hundred-millisecond granularity. Create checkpoints on running sandboxes, roll back to any saved state at any time, or fork from a specific state to explore in parallel. v0.3 changelog →
💾 Volume Framework E2B-compatible Volume framework that lets users plug in custom backend storage solutions. Volumes have an independent lifecycle and can be shared across sandboxes. Volume plugin →	🚀 Production Deployment Deploy production clusters on Tencent Cloud with one click using Terraform. Also supports deployment on standard Kubernetes clusters (preview). Terraform deploy → · K8s deploy →	💪 ARM Architecture Support Full native ARM64 support across compilation, build, and deployment workflows. Bare-metal deploy →

Demos

Installation & Demo	Performance Test	RL (SWE-Bench)	Snapshot · Clone · Rollback

Benchmarks

In the context of AI Agent code execution, CubeSandbox achieves the perfect balance of security and performance:

| Metric | Docker Container | Traditional VM | CubeSandbox | |---|---|---|---| | Isolation Level | Low (Shared Kernel Namespaces) | High (Dedicated Kernel) | Extreme (Dedicated Kernel + eBPF) | | Boot Speed
*Full-OS boot duration | 200ms | Seconds | Sub-millisecond (<60ms) | | Memory Overhead | Low (Shared Kernel) | High (Full OS) | Ultra-low (Aggressively stripped, <5MB) | | Deployment Density | High | Low | Extreme (Thousands per node) | | E2B SDK Compatible | / | / | ✅ Drop-in |

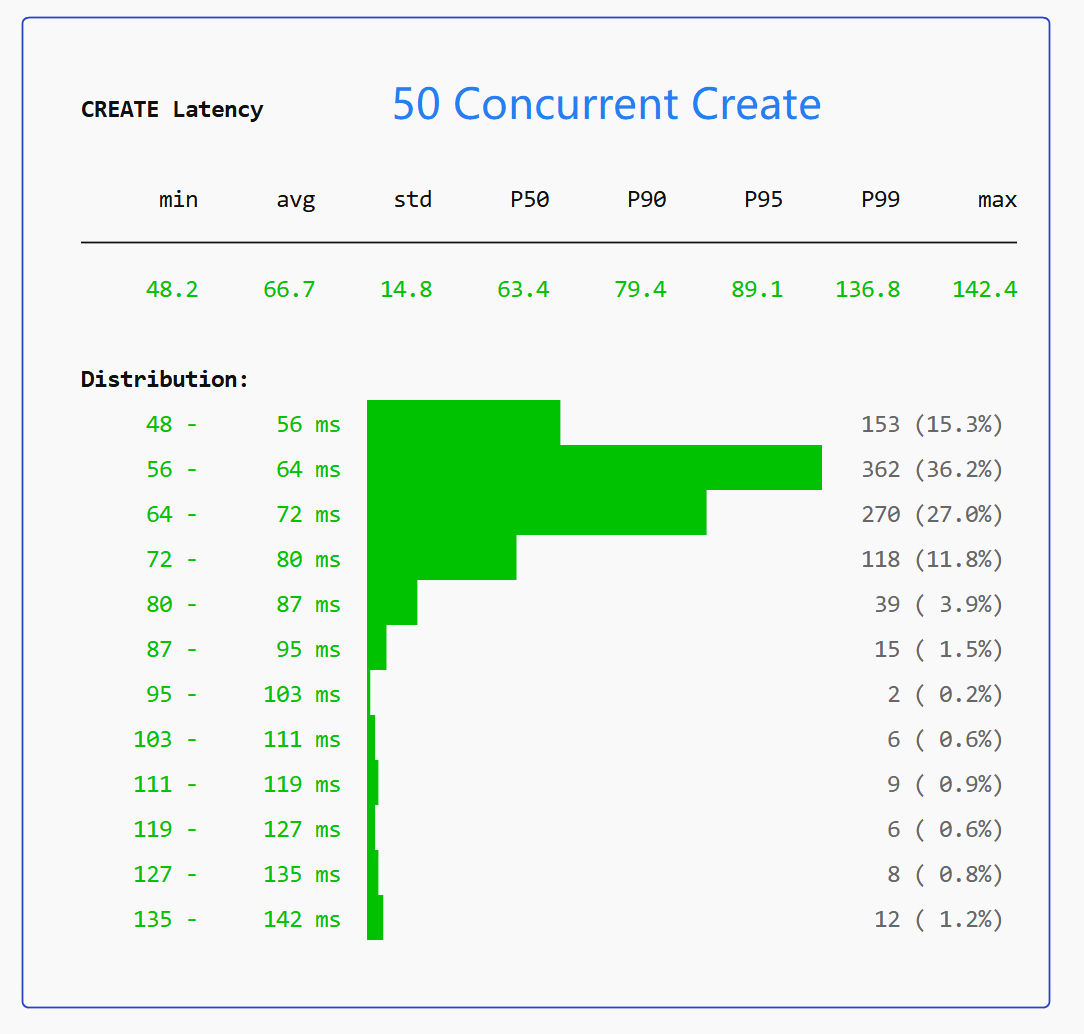

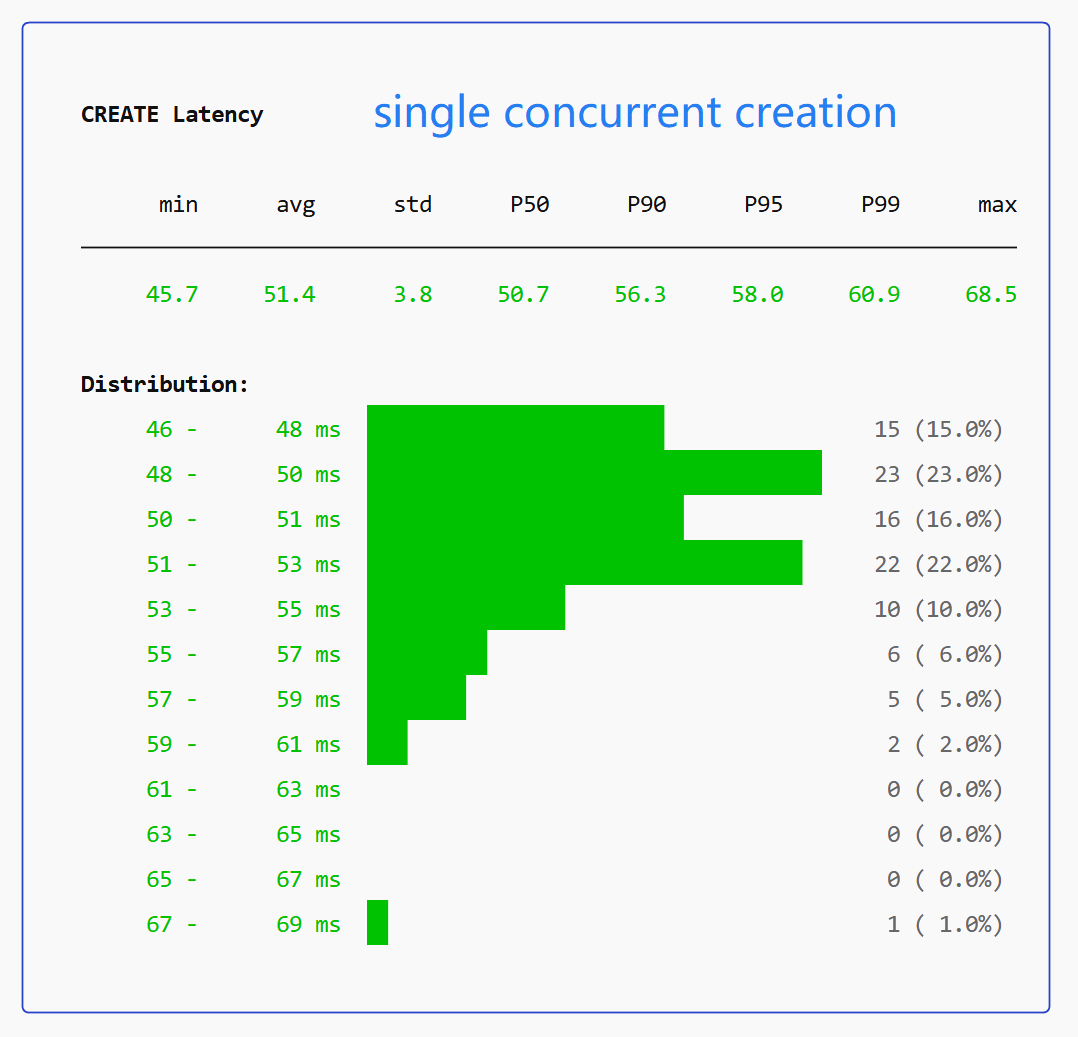

• Cold start benchmarked on bare-metal. 60ms at single concurrency; under 50 concurrent creations, avg 67ms, P95 90ms, P99 137ms — consistently sub-150ms.
• Memory overhead measured with sandbox specs ≤ 32GB. Larger configurations may see a marginal increase.

For detailed metrics on startup latency and resource overhead, see the Core Operations Performance Benchmark Report (bare metal) and the PVM Cloud Server Benchmark Report.

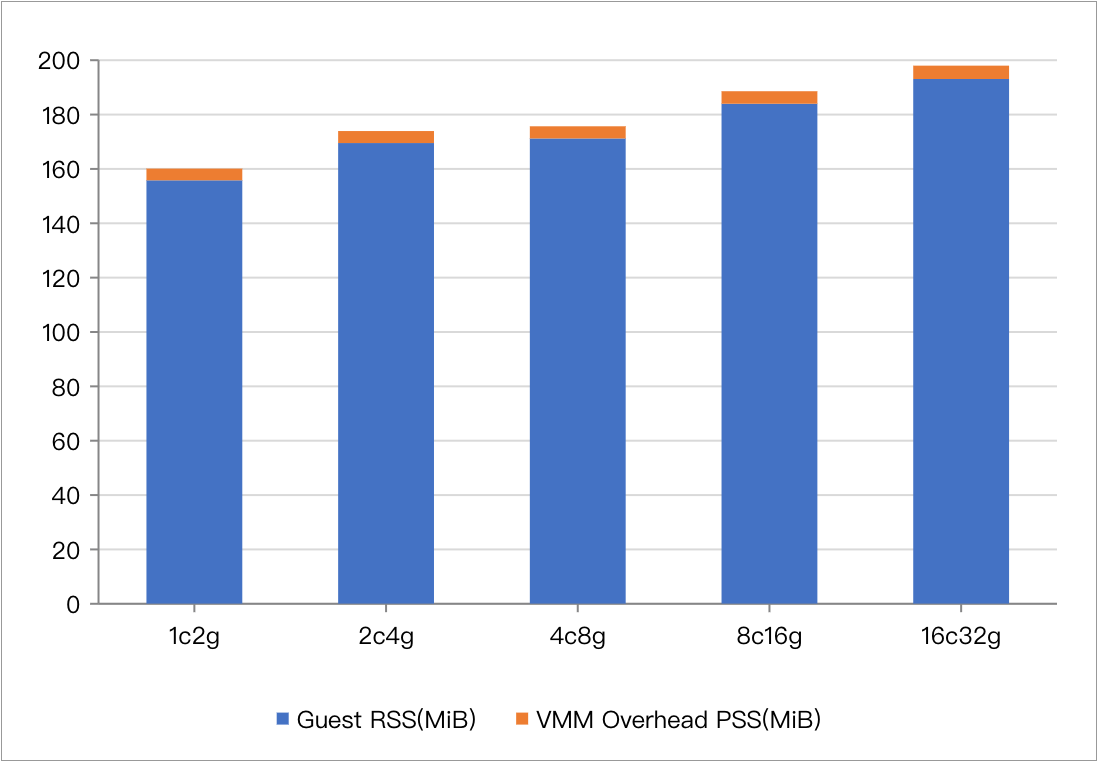

Sub-150ms sandbox delivery under both single and high-concurrency workloads	CubeSandbox base memory footprint across various instance sizes (*Blue: Sandbox specifications; Orange: Base memory overhead). Note that memory consumption increases only marginally as instance sizes scale up.

Quick Start

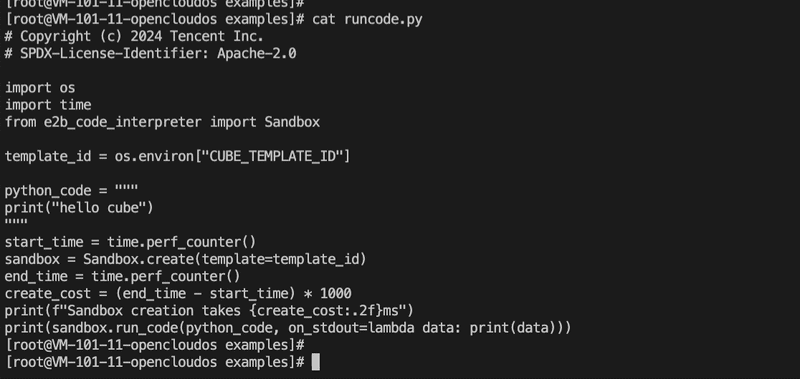

⚡ Millisecond-level startup — watch the fast-start flow above.

Cube Sandbox requires an x86_64 Linux environment with KVM support.

The guide walks you through everything in four steps — provisioning a server, installing Cube Sandbox, creating a sandbox template, and running your first agent code. No source build needed, up and running in minutes.

Choose your deployment path:

🖥 PVM · Cloud VM → 🏆 Recommended

🏗 Bare Metal →

💻 Dev-Env → ⚠️ Not recommended — poor performance

First thing after install: open the Web console

🖥️ Visual management — from overview to creating a sandbox and streaming logs, all in your browser.

After one-click deployment, open in your browser:

http://:12088

Recommended three steps:

1. Check overview — Open Overview, confirm nodes are Ready and capacity looks healthy 2. Prepare a template — Install an official preset from Template Store; skip if you already have a READY template under Templates 3. Create a sandbox — Sandboxes → + New sandbox, pick a READY template, and view live logs on the detail page within seconds

See the full WebUI console guide.

Deep Dive

• Documentation Home — complete guide navigation
• ☁️ PVM Deployment — deploy on ordinary cloud VMs without bare metal or nested virtualization
• Template Concepts — image-to-template concepts and workflows
• Example Projects — hands-on examples (code execution, browser automation, OpenClaw integration, RL training, and more)
• 🖥️ WebUI Console — visual management right after install (:12088)
• 🔐 Security Proxy & Credential Vault — CubeEgress domain filtering, injection, and auditing
• 🤖 Digital Assistant AgentHub — create and manage OpenClaw assistants (Preview)
• 💻 Development Environment (QEMU VM) — no KVM access? Try Cube Sandbox inside a disposable OpenCloudOS 9 VM

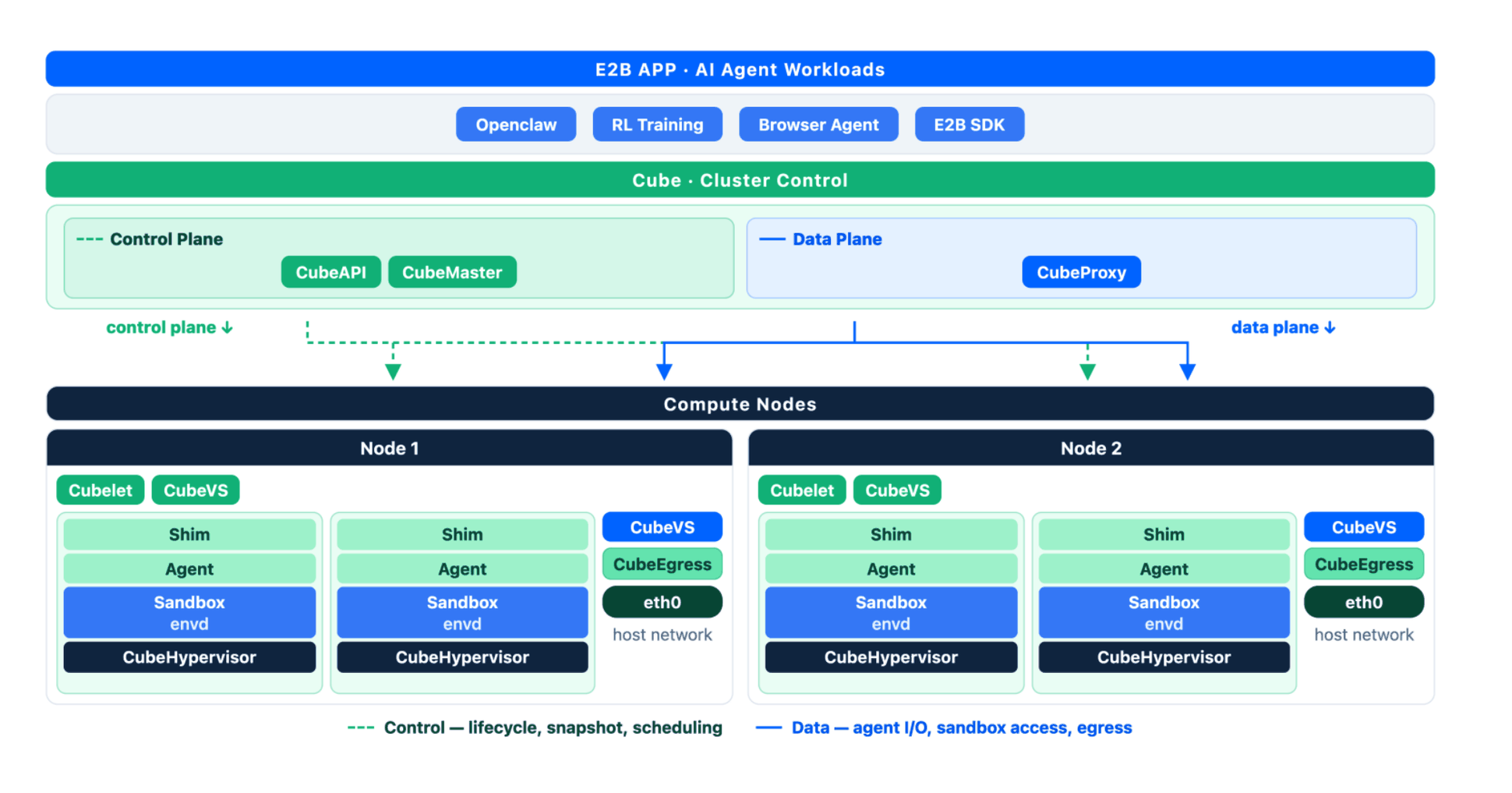

Architecture

| Component | Responsibility | |---|---| | CubeAPI | High-concurrency REST API Gateway (Rust), compatible with E2B. Swap the URL for seamless migration. | | CubeMaster | Cluster orchestrator. Receives API requests and dispatches them to corresponding Cubelets. Manages resource scheduling and cluster state. | | CubeProxy | Reverse proxy, compatible with the E2B protocol, routing requests to the appropriate sandbox instances. | | Cubelet | Compute node local scheduling component. Manages the complete lifecycle of all sandbox instances on the node. | | CubeVS | eBPF-based virtual switch, providing kernel-level network isolation and security policy enforcement. | | CubeEgress | OpenResty-based egress security gateway: L7 domain filtering, credential injection, and access auditing; works with CubeVS kernel policies so sandbox traffic cannot bypass inspection. | | CubeHypervisor & CubeShim | Virtualization layer — CubeHypervisor manages KVM MicroVMs, CubeShim implements the containerd Shim v2 API to integrate sandboxes into the container runtime. |

👉 For more details, please read the Architecture Design Document and CubeVS Network Model.

Community & Contributing

We welcome contributions of all kinds—whether it's a bug report, feature suggestion, documentation improvement, or code submission!

• 🐞 Found a Bug or have questions? Submit an issue on GitHub Issues.
• 💡 Have an Idea? Join the conversation in GitHub Discussions.
• 🛠️ Want to Code? Check out our CONTRIBUTING.md to learn how to submit a Pull Request.
• 📝 Want to contribute docs? Submit bilingual PRs to our community doc channels: Troubleshooting, Use Cases, and Integrations. Additionally, the Cube 100 Program is now open — we're looking for the first 100 teams running AI agents in production with Cube. Limited to 100 seats. Learn more & apply →
• 💬 Want to Chat? Join our Discord.

Roadmap

Coming soon — see the full roadmap for details.

| Feature | Description | |---|---| | Cross-Node Pause/Resume Performance | Cut pause/resume latency and speed up snapshot transfer so cross-node resume approaches same-node speed | | E2B API Compatibility | Close remaining gaps with the E2B specification for full drop-in compatibility | | Sandbox Fault Recovery | Automatic detection and recovery of crashed VMs, stuck shim processes, and network partitions with configurable recovery policies | | Scheduling & Operations Enhancements | Resource-aware placement, affinity rules, live rebalancing, and node drain with sandbox migration | | S3 Performance and Cost Optimization | Incremental uploads, better cache, and cheaper storage classes so S3 snapshot/volume I/O stays fast at lower cost | | Filesystem-Only Snapshots | Snapshot the writable filesystem without a memory dump for cheaper, faster clone/restore when a cold start from disk is enough | | GPU Sandboxes | Attach host GPUs to sandboxes so Agent and inference workloads can run CUDA inside the isolated VM, with GPU-aware scheduling |

Contributors

Thanks to all contributors:

License

CubeSandbox is released under the Apache License 2.0.

The birth of CubeSandbox stands on the shoulders of open-source giants. Special thanks to Cloud Hypervisor, Kata Containers, virtiofsd, containerd-shim-rs, ttrpc-rust, and others. We have made tailored modifications to some components to fit the CubeSandbox execution model, and the original in-file copyright notices are preserved.

---

Cube Sandbox is listed in the CNCF Landscape.
