Get Started

1. Install the CLI

No Node.js required — one command grabs the right build for your OS:

# macOS / Linux
curl -fsSL https://raw.githubusercontent.com/colbymchenry/codegraph/main/install.sh | sh
Windows (PowerShell)
irm https://raw.githubusercontent.com/colbymchenry/codegraph/main/install.ps1 | iex

npm i -g @colbymchenry/codegraph

2. Wire up your agent(s)

In a new terminal, run the installer to connect CodeGraph to the agents you use:

codegraph install

_{Detects and auto-configures Claude Code, Cursor, Codex CLI, opencode, Hermes Agent, Gemini CLI, Antigravity IDE, Kiro, and GitHub Copilot (VS Code, Copilot CLI, JetBrains IDEs) — wiring the CodeGraph MCP server into each. This is the step that connects CodeGraph to your agent; installing the CLI in step 1 does not do it on its own. It only wires up your agent — it does not index any code; building each project's graph is the separate codegraph init in step 3. (Shortcut: npx @colbymchenry/codegraph downloads and runs this in one go.)}

3. Initialize each project

cd your-project
codegraph init

_{codegraph init creates the local .codegraph/ directory and builds the full graph in the same step — one command, done.}

4. No more syncing!

Auto-sync is enabled by default. CodeGraph watches the project and updates the graph on every file change — while your agent edits code, or you add, modify, or delete files. The index is never stale, and there is nothing to re-run.

5. See what your agent sees

codegraph ui

Opens the graph in your browser at http://127.0.0.1:4747 — callers on the left, the symbol's source in the middle, what it calls on the right. See Read your graph in the browser.

Uninstall

Changed your mind? One command removes CodeGraph from every agent it configured and the CLI itself — every install it finds (standalone bundle, npm global package, launcher link), shown to you before anything is deleted:

codegraph uninstall

Pass --keep-cli to remove only the agent configurations and keep the CLI installed.

_{Reverses the installer — strips CodeGraph's MCP server config, instructions, and permissions from each configured agent. Your project indexes (.codegraph/) are left untouched; remove those per-project with codegraph uninit. Use --target to remove from specific agents, or --yes to run non-interactively.}

---

Language Support

Every language below gets the same treatment — full structural extraction and cross-file resolution into one graph, no per-language setup:

_{Per-language details — extensions, frameworks, and what exactly gets extracted — in Supported Languages.}

---

Why CodeGraph?

When an AI agent needs to understand code — to answer a question or make a change — it discovers structure the slow way: grep, glob, and Read, one file at a time, rebuilding call paths and dependencies by hand. That's a pile of tool calls and round-trips before it even starts the real work.

CodeGraph hands the agent the exact code it needs in one call. It's a pre-built knowledge graph of every symbol, call edge, and dependency in your codebase — so instead of crawling files, the agent asks one question and gets back the relevant source, the call paths between those symbols (including dynamic-dispatch hops grep can't follow), and the blast radius of a change. Surgical context, not a file-by-file search — which means fewer tool calls and faster answers on every codebase, large or small.

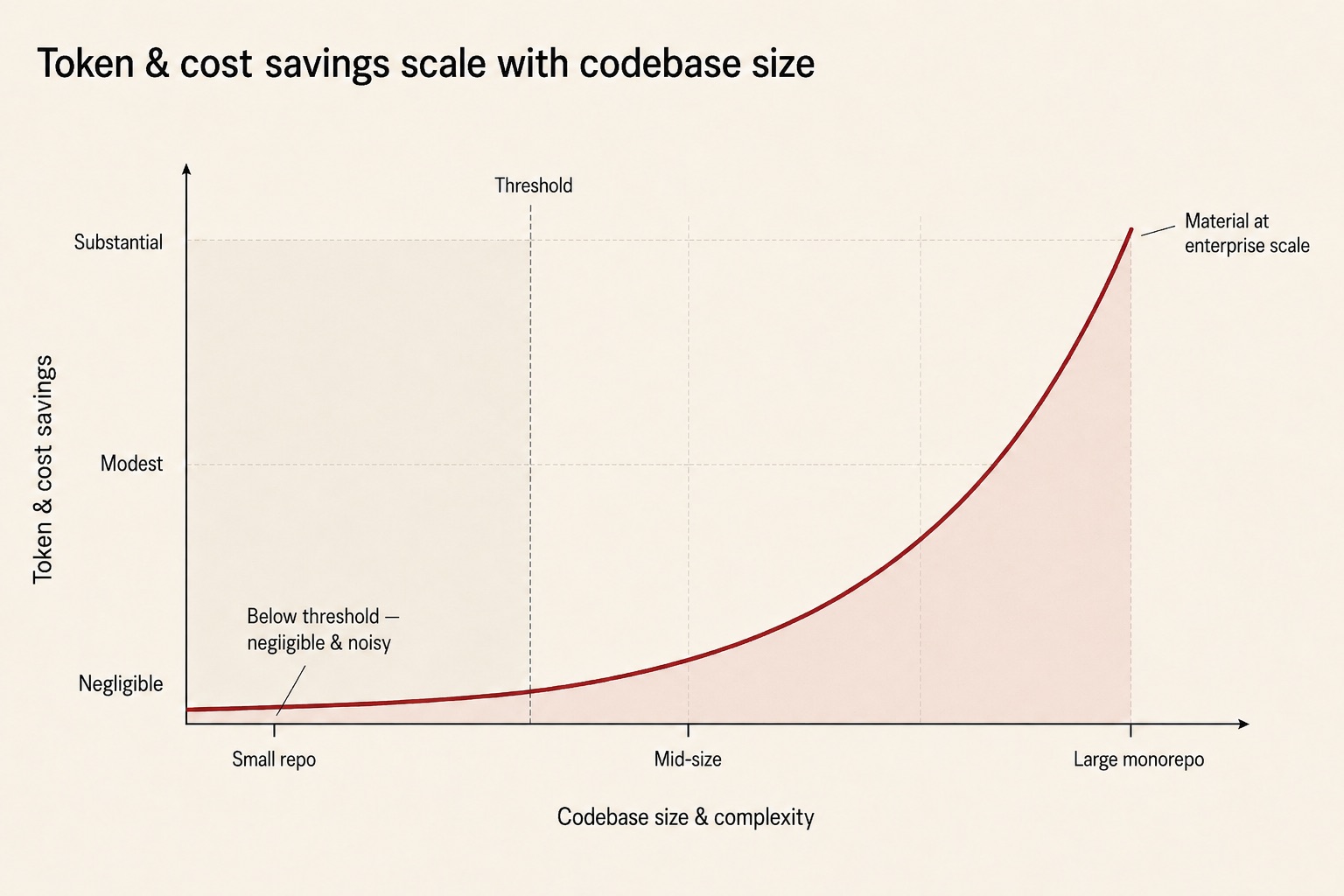

A note on cost: CodeGraph's win on every codebase is precision — the agent stops crawling files and answers from the graph. On current models that precision is also a large direct saving: the 2026-08 re-measurement, on a harness that blocks the CLI in both arms, put it at 44% lower cost and 62% fewer tokens on average across the seven benchmark repos, because a strong model without the graph burns its budget re-deriving structure. Cost tracks how much discovery a question demands more than raw repo size: 57–78% on questions the file-reading agent needed 28–43 tool calls to answer, near-even where it got there in 7.

A note on context: the numbers above measure throughput — tokens processed, tools called, dollars spent to reach one answer. They don't measure what is still sitting in your context window afterward, and on that axis CodeGraph costs more, not less. Across the same seven repos in multi-turn sessions, CodeGraph's responses leave about 80% more retrieval context resident at the end of a session than a file-reading agent's do — on VS Code, 67k tokens against 18k. The mechanism is the same one that makes it fast: CodeGraph returns one dense, verbatim payload that answers the question and then stays in the window, where a grep-and-read agent churns through many small results that get evicted. Fewer tokens processed and a larger persistent footprint are both real at once. If you run long sessions in a small window, budget for it. Measured per-repo: docs/benchmarks/residual-context-occupancy.md.

Benchmark Results

Tested across 7 real-world open-source codebases spanning 7 languages, comparing an agent (Claude Code, headless) answering one architecture question with and without CodeGraph, at the median of 4 runs per arm. _Re-measured 2026-08-05 on Claude Opus 4.8 against the current build, on a harness that blocks the codegraph CLI in both arms — contamination row: 0 of 28 without-arm runs._

The universal win — every repo, every size: 88% fewer tool calls · 53% faster · 62% fewer tokens · 44% cheaper · file reads cut to zero on all seven repos.

With the index available, the agent answers from one to four codegraph_explore calls and stops. Without it, the agent burns its budget on discovery — up to 43 tool calls and 19 file reads re-deriving what the graph already knew. Every repo was faster with CodeGraph in this measurement — by 35% on the narrowest question, by 3.6× on the widest.

| Codebase | Language | Tool calls | Time | File reads | Tokens | Cost | |----------|----------|------------|------|------------|--------|------| | VS Code | TypeScript · ~11k files | 2 vs 28 | 2.2× faster (58s vs 2m 10s) | 0 vs 12 | 77% fewer | 71% cheaper | | Excalidraw | TypeScript · ~640 | 2 vs 43 | 3.6× faster (45s vs 2m 42s) | 0 vs 18 | 84% fewer | 78% cheaper | | Django | Python · ~3k | 3 vs 14 | 35% faster (54s vs 1m 23s) | 0 vs 8.5 | 41% fewer | 13% cheaper¹ | | Tokio | Rust · ~790 | 3 vs 29 | 2.6× faster (1m 3s vs 2m 43s) | 0 vs 19 | 65% fewer | 64% cheaper | | OkHttp | Java · ~645 | 1 vs 6 | 43% faster (33s vs 58s) | 0 vs 2 | 54% fewer | 21% cheaper | | Gin | Go · ~110 | 1 vs 7 | 39% faster (28s vs 46s) | 0 vs 4 | 52% fewer | ~even¹ | | Alamofire | Swift · ~110 | 4 vs 33 | 2.6× faster (54s vs 2m 22s) | 0 vs 16.5 | 59% fewer | 57% cheaper |

_{¹ Cost tracks how much discovery the question demanded, which is why it varies far more than the other columns: 57–78% on repos where the file-reading arm needed 28–43 tool calls, but only 13% on Django and even on Gin, where it got there in 14 and 7. The with-arm still answered in 3 and 1 calls with zero file reads. File reads = median files opened — the surgical-context win in one column: the agent never reads a file on any of the seven repos when CodeGraph is present.}

---

Built for speed — the Rust kernel

CodeGraph's parsing engine is a native Rust kernel: 20 languages — TypeScript, JavaScript, Java, Python, Go, C, C++, Rust, C#, Ruby, PHP, Swift, Kotlin, Scala, Dart, R, Lua, Luau (Metal and CUDA ride the C++ path) — parse in compiled code with one boundary crossing per file. Every language shipped only after its graphs proved byte-for-byte identical to the reference engine on real repositories, from small libraries up to the Linux kernel; platforms without a prebuilt binary and files with syntax errors fall back per-file automatically, same graph either way.

And it scales itself to the machine it's on. Worker pools, parallel resolution, and analysis caches are sized from what the system actually has — real core counts (container/cgroup-aware, so a VPS that grants 2 cores gets sized for 2, not the host's 64), honestly-measured available RAM on macOS and Linux, and the measured cost of your project's resolution work:

• On a workstation: the full parallel pipeline — native parse workers, a multi-worker resolver pool that engages the moment it pays for itself, memory-gated analysis caches. The Swift compiler repository (27k files of Swift and C++) fresh-indexes in about 100 seconds; a one-file edit re-syncs in ~4.
• On a 2-core / 6GB VPS: the same graph, from a pipeline tuned to finish — the Linux kernel (70k files, 2M symbols, 6.4M relationships) indexes to completion in under 12 minutes where RAM-first designs run out of memory before reaching 1%.
• Every day after day one: saving a file updates the graph in well under a second — the watcher fires 300ms after a lone save and syncs exactly what changed (~0.3s of work on a 4,400-file project, ~0.4s on the 27,000-file Swift compiler repo), never re-scanning the tree. Measured against the fastest competing indexer's re-index-on-change: 2–7× faster on medium and larger repos across a 31-repo, 30-language benchmark — and the gap widens with repo size, because their cost grows with the repository and ours grows with the change.

Key Features

| | | |---|---| | Native Rust Kernel | Parsing and extraction run in a compiled Rust engine for 20 languages — with graphs verified byte-for-byte identical to the reference engine, and automatic per-file fallback so nothing ever breaks | | Adapts to Your Machine | Sizes its worker pools and caches from what the system actually has — real core counts (container-aware), honest available RAM, measured per-project cost. A workstation gets the full parallel pipeline; a 2-core VPS gets one tuned to finish reliably | | Surgical Context | One tool call returns entry points, related symbols, and code snippets — no slow file-by-file exploration | | Full-Text Search | Find code by name instantly across your entire codebase, powered by FTS5 | | Impact Analysis | Trace callers, callees, and the full impact radius of any symbol before making changes | | Always Fresh | File
