blendi-remade/prompt2rig

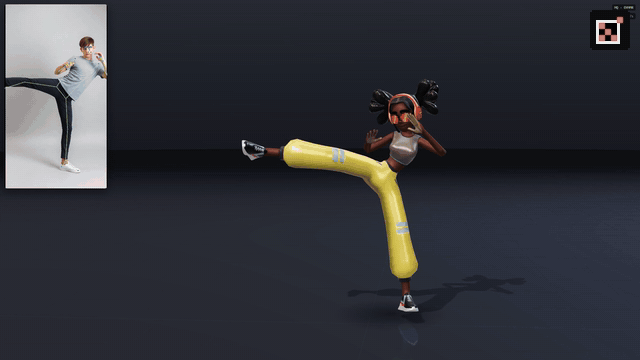

Type a motion. A video model acts it out, and any rigged character performs it, fingers included.
A prompt goes to a fast video model on fal, your GPU recovers clean 3D body and hand motion from the clip, and it plays live on a Mixamo character in the browser, ready to export to Blender or Unity.



A universal-modder tool. Share what you make, get help, and follow along on discord and x.

How it works

flowchart LR
  P[prompt] --> V["FLUX 3 Max / H3 Max Turbo
on fal"]
  I["performer image
or the last clip's final frame"] --> V
  V --> L["MediaPipe · browser
instant preview"]
  V --> H["GVHMR · your GPU
3D body motion"]
  V --> F["WiLoR · your GPU
wrists + fingers"]
  L --> R[Mixamo rig]
  H -- cross-fade --> R
  F --> R
  R --> G[".glb · Blender render"]

| Stage | Where | Time (5s clip, RTX 4090) | |---|---|---| | Video | fal · FLUX 3 Max (720p) | ~8–9s (4.5s GPU) | | | fal · H3 Max Turbo (480P) | ~2–3s (0.5s GPU) | | Live preview: MediaPipe Pose, retargeted per frame | browser | immediate | | HQ motion: GVHMR → SMPL rotations → Mixamo | local GPU worker | ~3.5–4s | | Fingers: WiLoR (MediaPipe fallback), in parallel with GVHMR | local GPU worker | +~0.3s |

The live pass covers the wait; the HQ pass is the result. GVHMR sees the whole clip at once, outputs joint rotations on a fixed-proportion body and recovers a gravity-aware root path, so there's no jitter, limb stretching or twisted forearms. WiLoR adds the palm and all 15 finger joints per hand.

Quick start

Needs: Node 18+ and a fal API key. For the HQ pass: Windows, an NVIDIA GPU, uv and ffmpeg on PATH.

git clone https://github.com/blendi-remade/prompt2rig && cd prompt2rig
cp .env.example .env          # add your FAL_KEY
node server.mjs               # → http://localhost:5177 (the live preview works now)

HQ pass (recommended):

hq\setup.ps1                  # venv, CUDA PyTorch, GVHMR + ~5 GB of checkpoints

Download SMPL-X v1.1 (NPZ) from smpl-x.is.tue.mpg.de (free registration) and put SMPLX_NEUTRAL.npz in hq/body_models/smplx/.

Finger tracking (optional): WiLoR needs the MANO hand model. Register at mano.is.tue.mpg.de, download Models & Code (mano_v1_2.zip), then:

hq\.venv\Scripts\python hq\setup_hands.py $HOME\Downloads\mano_v1_2.zip   # WiLoR weights + MANO

Without MANO, fingers fall back to MediaPipe Hands (rougher depth). Then start the worker next to the web server:

hq\.venv\Scripts\python hq\worker.py    # → 127.0.0.1:5178, loads once and stays warm

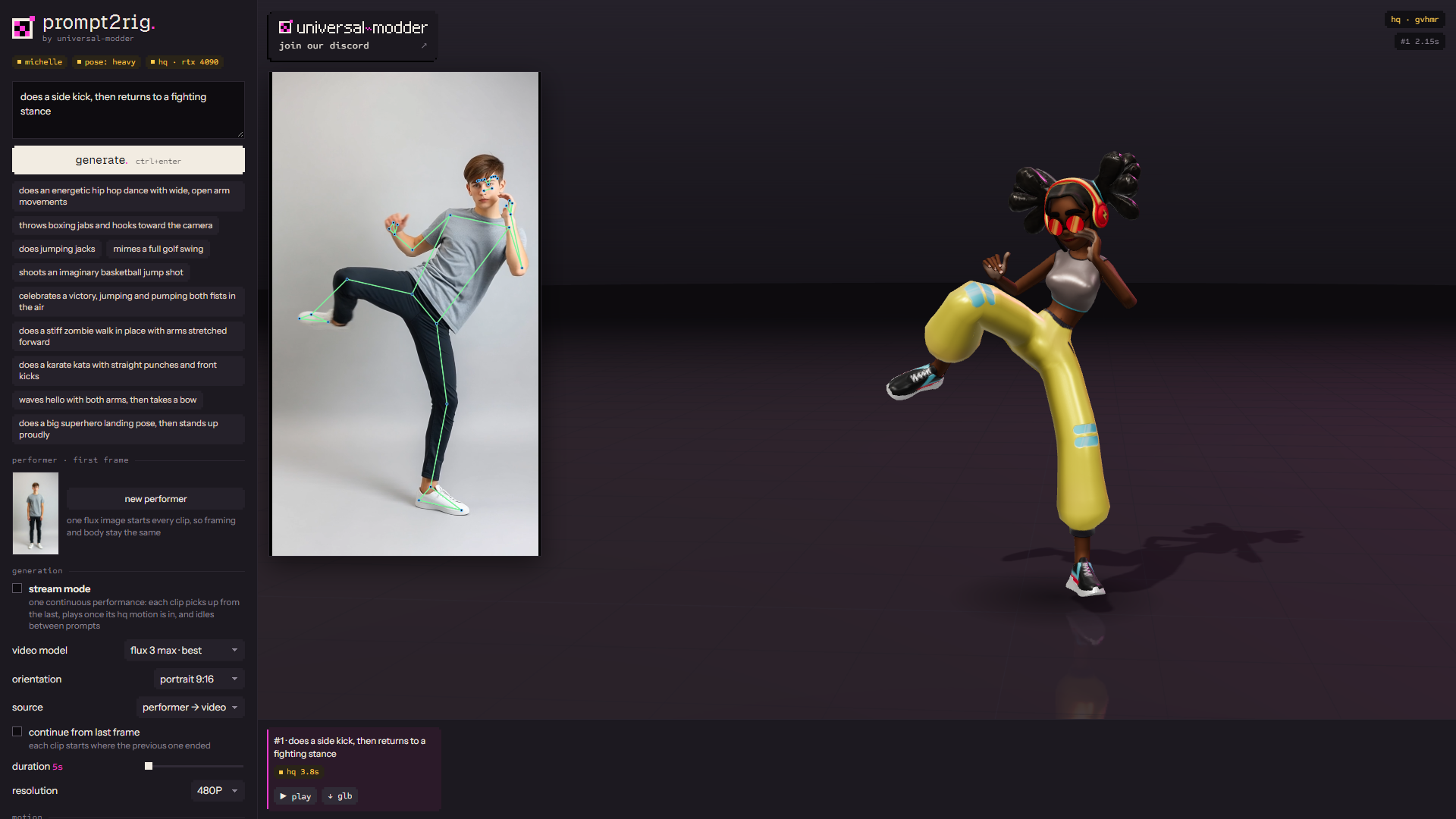

Using it

• Generate from a prompt or a preset. Every clip starts from the same flux-made performer (one person, full body,

plain backdrop, static camera), which is the input pose estimation likes best.

• Video model. FLUX 3 Max for the most realistic motion; H3 Max Turbo for the fastest loop and stream mode.
• Character. X Bot, Michelle or Soldier (textured Mixamo rigs from the three.js examples), or load mixamo file…

for any Mixamo .fbx / .glb from mixamo.com (T-pose).

• Track fingers. WiLoR runs on the full-resolution clip; hands are matched to the body's wrists, rotated into the

motion's world frame and smoothed. Untracked hands rest in a natural curl.

• Stream mode. One continuous performance: each clip picks up from the last one's final frame, plays once its HQ

motion is in while the next one generates, and short idle clips fill the gaps between prompts.

• Swap character every loop, cinematic camera, portrait or landscape clips.
• ↓ glb on any take exports the skinned character with its animation, and keeps a copy plus the source clip's URL in takes/.

Prompts that retarget well face the camera with the limbs clear of the body: dances, kicks, kata, sport mimes, celebrations, clear hand shapes. Flips, spins, floor work and crossed or hidden arms confuse any single-camera pose estimator; the presets and the prompt template steer away from them.

Renders and recordings

Blender. Turn a saved take into a studio clip (cyclorama, three-point light, slow camera arc), headless:

& "C:\Program Files\Blender Foundation\Blender 5.2\blender.exe" -b -P tools/render_blender.py -- takes/.glb --side-by-side

It writes renders/.mp4 (1080×1920, or --res 1920x1080) and, with --side-by-side, the source clip next to the render.

App recordings. tools/capture.mjs drives an off-screen Chrome and records takes frame by frame at 2560×1440, so nothing on your screen is touched:

node tools/capture.mjs --prompts tools/prompts_dynamic.txt --character xbot --out captures
node tools/capture.mjs --clip

Project layout

| Path | | |---|---| | server.mjs | zero-dependency server; proxies fal (the key stays server-side) and the HQ worker | | public/app.js | UI, generation queue, live pose loop, playback and blending, stream mode, GLB export, capture hooks | | public/stage.js | the stage: lighting, reflective floor, contact shadows, cinematic camera | | public/retarget.js | Mixamo rig: MediaPipe landmarks → bones, SMPL rotations → bones, fingers, rig-to-rig pose copy | | public/brand/ | universal-modder logos and fonts (Geist Pixel, Instrument Sans, Sometype Mono, all OFL) | | hq/worker.py | FastAPI worker around the gvhmr package, tuned for single-person generated clips | | hq/hands.py | finger tracking: batched WiLoR or MediaPipe, wrist assignment, camera → world, smoothing | | tools/ | Blender renderer, off-screen capture, prompt lists, README media generator | | bench/ | hand-pose test bench: detection and jitter metrics, 2D overlays, source-vs-rig close-ups |

HQ worker speedups (stock gvhmr.recover: 10s → 3.4s per 5s clip)

• batched single-person YOLO11m instead of frame-by-frame YOLOv8x + BoT-SORT tracking
• decoded frames reused by the crop stage (OpenCV) instead of a second PyAV decode
• ViTPose without flip-test (HQ_POSE_FLIP=1 turns it back on; measured 0.6° mean joint difference)
• 24→30 fps resample with ffmpeg ultrafast, long side capped at 854px (GVHMR only sees 256px crops)
• fixed detector batch shape and per-orientation warm-up; all GPU work on one warmed-up thread
• WiLoR batched (2.3× faster than per-frame, same output within 0.25px) and run alongside GVHMR
• left/right keypoint-swap stabilizer from Motion2MixamoRig; camera-relative heading so chained clips line up

Credits

• GVHMR (ZJU3DV) via the gvhmr package ·

WiLoR via WiLoR-mini · Motion2MixamoRig by @MaxLiu09, which started this

• MediaPipe · three.js (X Bot, Michelle and Soldier from its examples) ·

video and image models on fal

Community

Made by the universal-modder crew. Discord · X @universalmodhq · universalmodder.com

License

prompt2rig's own code is Apache-2.0 (see NOTICE). It runs alongside third-party components that keep their own licenses; none are included in this repo:

| Component | License | Commercial use | |---|---|---| | GVHMR: the HQ motion pass | educational / research / non-profit only | ❌ | | SMPL-X body model | non-commercial, registration required | ❌ (commercial license from Meshcapade) | | WiLoR: finger tracking | CC-BY-NC-ND | ❌ | | MANO hand model | non-commercial, registration required | ❌ | | Ultralytics YOLO: detectors in the HQ worker | AGPL-3.0 | ⚠️ copyleft, or an Ultralytics enterprise license | | MediaPipe · three.js | Apache-2.0 · MIT | ✅ | | Geist Pixel · Instrument Sans · Sometype Mono | SIL OFL 1.1 (bundled in public/brand/fonts) | ✅ | | Mixamo characters | Adobe Mixamo terms (loaded from the three.js CDN, not redistributed) | ✅ in your own projects | | FLUX 3 Max, H3 Max Turbo, FLUX.1 schnell | fal and model-provider terms | per those terms |

In short: the web app, the live preview and video generation are commercially usable; the HQ path (GVHMR, SMPL-X, WiLoR, MANO) is research / non-commercial, so a commercial product would need to replace or license those pieces.

Tested on Windows 11 with an RTX 4090.
