3X-UI is an advanced, open-source web control panel for managing Xray-core servers. It provides a clean, multi-language interface for deploying, configuring, and monitoring a wide range of proxy and VPN protocols — from a single VPS to multi-node deployments.

Built as an enhanced fork of the original X-UI project, 3X-UI adds broader protocol support, improved stability, per-client traffic accounting, and many quality-of-life features.

[!IMPORTANT]

This project is intended for personal use only. Please do not use it for illegal purposes or in a production environment.

Features

• Multi-protocol inbounds — VLESS, VMess, Trojan, Shadowsocks, WireGuard, AmneziaWG, TUIC v5, Hysteria2, MTProto, HTTP, SOCKS (Mixed), Dokodemo-door / Tunnel, and TUN.
• Modern transports & security — TCP (Raw), mKCP, WebSocket, gRPC, HTTPUpgrade, and XHTTP, secured with TLS, XTLS, and REALITY.
• AmneziaWG built in — DPI-resistant WireGuard runs inside the panel on a userspace network stack, with no kernel module, DKMS, or extra packages to install.
• TUIC v5 sidecar — High-performance QUIC-based proxy with native UDP relay traffic metering, 0-RTT handshakes, and BBR congestion control.
• MTProto proxies — per-client FakeTLS secrets, ad-tags, and quotas, applied live without dropping existing connections.
• Fallbacks — serve multiple protocols on a single port (e.g. VLESS and Trojan on 443) using Xray's fallback support.
• Per-client management — traffic quotas, expiry dates, IP limits with trusted-address exemptions, HWID device limits, scheduled renewal cycles, live online status, and one-click share links, QR codes, and subscriptions.
• Traffic statistics — per inbound, per client, and per outbound, with reset controls.
• Multi-node support — manage and scale across multiple servers from a single panel, including cloning inbounds onto other nodes.
• Outbound & routing — WARP, NordVPN, PIA, custom routing rules, load balancers with balancer-to-balancer fallback, and outbound proxy chaining. Bundled geosite and geoip categories are browsable straight from the rule editor.
• Built-in subscription server — raw, JSON, and Clash output, auto-selected from the client's User-Agent, plus custom page templates.
• Telegram and Discord bots for remote monitoring and management.
• RESTful API with scoped, optionally expiring tokens and an in-panel API reference.
• Installable panel (PWA) — pin 3X-UI to a desktop or phone home screen.
• Flexible storage — SQLite (default) or PostgreSQL.
• 13 UI languages with dark and light themes.
• Fail2ban integration for enforcing per-client IP limits.

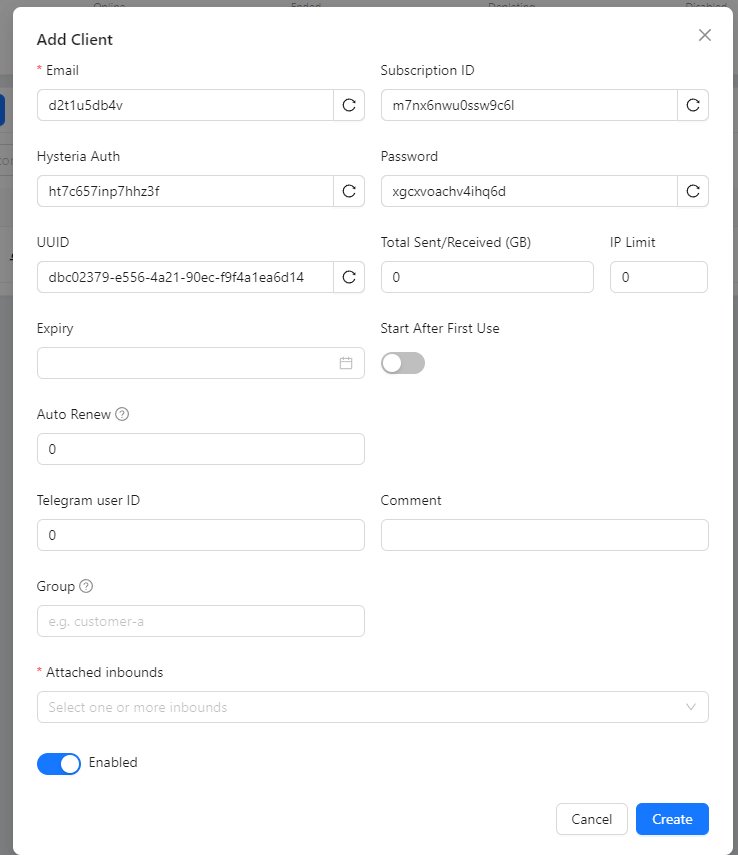

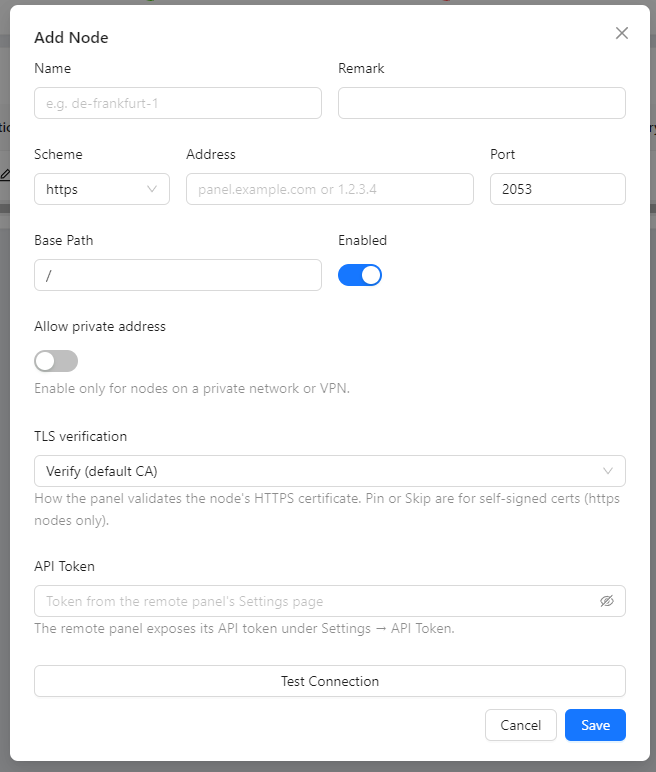

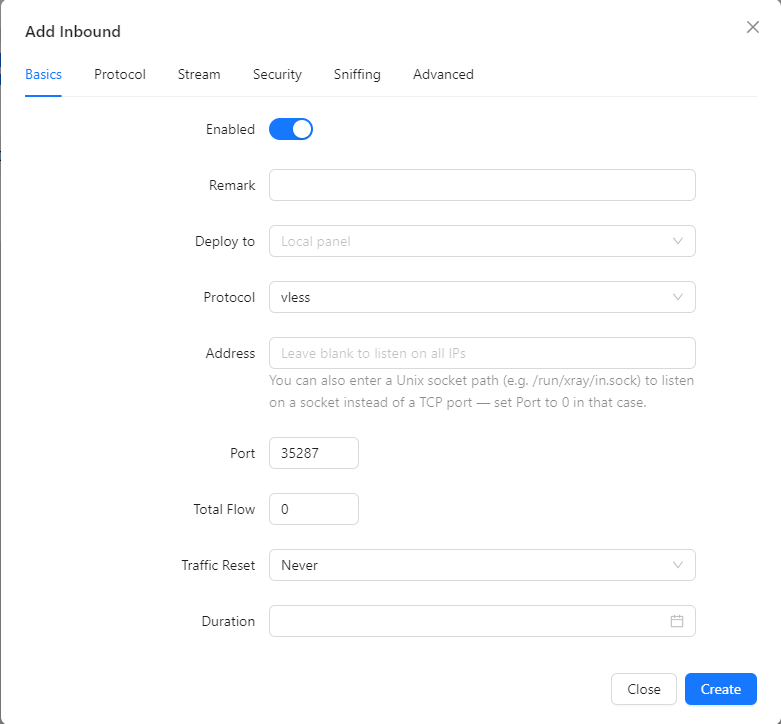

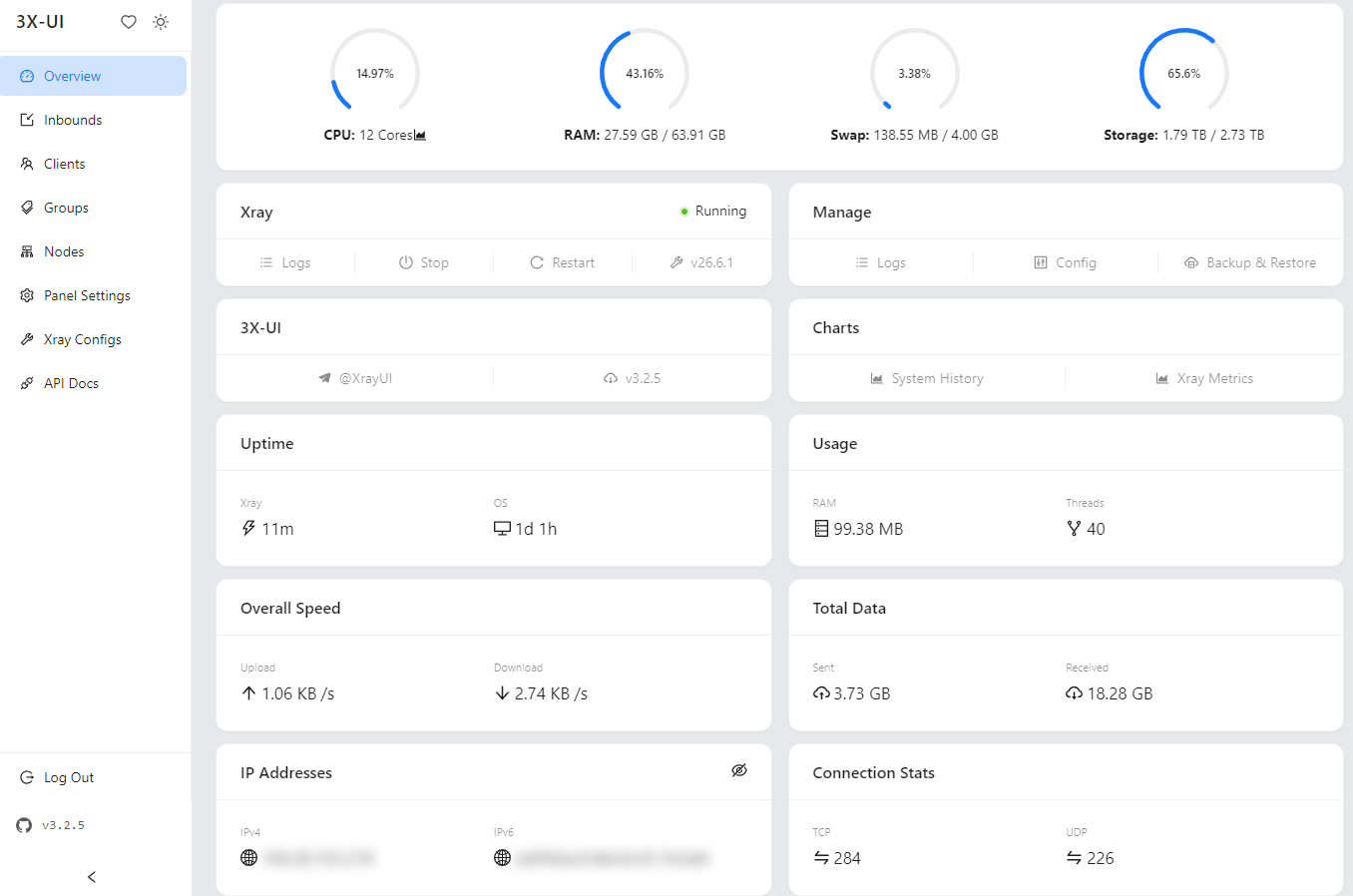

Screenshots

Click to expand

Quick Start

bash <(curl -Ls https://raw.githubusercontent.com/mhsanaei/3x-ui/master/install.sh)

To install a specific version, append its tag (e.g. v3.7.0):

bash <(curl -Ls https://raw.githubusercontent.com/mhsanaei/3x-ui/master/install.sh) v3.7.0

To install the rolling dev build (latest per-commit pre-release from main, not a stable release), pass dev-latest:

bash <(curl -Ls https://raw.githubusercontent.com/mhsanaei/3x-ui/master/install.sh) dev-latest

During installation a random username, password, and access path are generated. After installation, run x-ui to open the management menu, where you can start/stop the service, view or reset your login credentials, manage SSL certificates, and more.

Every release asset is published with a .sha256 sum next to it. Both install.sh and the updater verify the archive against that sum and abort on a mismatch.

For full documentation — installation, configuration, operations, and the complete API reference — visit docs.sanaei.dev.

Unattended install

The installer also runs non-interactively for cloud-init. Set XUI_NONINTERACTIVE=1 (or pipe with no TTY) and it installs end-to-end with zero prompts, generating random credentials and writing them to /etc/x-ui/install-result.env. See deploy/ for:

• Cloud-init user-data — unattended install on any cloud (Hetzner/AWS/DO/Vultr/GCP/Azure/Oracle)
• Hetzner Cloud notes — cloud-init deployment on Hetzner

Supported Platforms

Operating systems: Ubuntu, Debian, Armbian, Fedora, CentOS, RHEL, AlmaLinux, Rocky Linux, Oracle Linux, Amazon Linux, Virtuozzo, Arch, Manjaro, Parch, openSUSE (Tumbleweed / Leap), Alpine, and Windows.

Architectures: amd64 · 386 · arm64 (aarch64) · armv7 · armv6 · armv5 · s390x.

Database Options

3X-UI supports two backends, chosen during the install:

• SQLite (default) — a single file at /etc/x-ui/x-ui.db. Zero setup, ideal for small and medium deployments.
• PostgreSQL — recommended for high client counts or multi-node setups. The installer can install PostgreSQL locally for you, or accept a DSN to an existing server.

At runtime the backend is selected via environment variables (the installer writes these to /etc/default/x-ui for you):

XUI_DB_TYPE=postgres
XUI_DB_DSN=postgres://xui:[email protected]:5432/xui?sslmode=disable

Migrating an existing SQLite install to PostgreSQL

x-ui migrate-db --dsn "postgres://xui:[email protected]:5432/xui?sslmode=disable"
then set XUI_DB_TYPE and XUI_DB_DSN in /etc/default/x-ui and restart:
systemctl restart x-ui

The source SQLite file is left untouched; remove it manually once you have verified the new backend.

Docker

The default docker compose up -d keeps using SQLite. To run with the bundled PostgreSQL service, uncomment the two XUI_DB_* env lines in docker-compose.yml and start with the profile:

docker compose --profile postgres up -d

The image bundles Fail2ban (enabled by default) to enforce per-client IP limits. Fail2ban bans offenders with iptables, which requires the NET_ADMIN capability. docker-compose.yml already grants it via cap_add; if you start the container with docker run instead, add the capabilities yourself, otherwise bans are logged but never applied:

docker run -d --cap-add=NET_ADMIN --cap-add=NET_RAW ... ghcr.io/mhsanaei/3x-ui

Environment Variables

| Variable | Description | Default | | --- | --- | --- | | XUI_DB_TYPE | Database backend: sqlite or postgres | sqlite | | XUI_DB_DSN | PostgreSQL connection string (when XUI_DB_TYPE=postgres) | — | | XUI_DB_FOLDER | Directory for the SQLite database file | /etc/x-ui | | XUI_DB_MAX_OPEN_CONNS | Maximum open connections (PostgreSQL pool) | — | | XUI_DB_MAX_IDLE_CONNS | Maximum idle connections (PostgreSQL pool) | — | | XUI_INIT_WEB_BASE_PATH | The initial URI path for the web panel | / | | XUI_ENABLE_FAIL2BAN | Enable Fail2ban-based IP-limit enforcement | true | | XUI_LOG_LEVEL | Log verbosity (debug, info, warning, error) | info | | XUI_DEBUG | Enable debug mode | false | | XUI_TUNNEL_HEALTH_MONITOR | Enable the tunnel health monitor (probes a URL and restarts xray after repeated failures; a restart drops all clients) | false | | XUI_TUNNEL_HEALTH_PROXY | Proxy the probe is sent through; point it at a local xray inbound so the probe tests the tunnel (e.g. socks5://127.0.0.1:1080). Empty means the probe only checks host connectivity | — | | XUI_TUNNEL_HEALTH_URL | URL probed for tunnel health | https://www.cloudflare.com/cdn-cgi/trace | | XUI_TUNNEL_HEALTH_INTERVAL | Interval between probes | 30s | | XUI_TUNNEL_HEALTH_TIMEOUT | Per-probe timeout | 10s | | XUI_TUNNEL_HEALTH_FAILURES | Consecutive failures before a restart is triggered | 3 | | XUI_TUNNEL_HEALTH_COOLDOWN | Minimum delay between consecutive restarts | 5m | | NODE_TOKEN_ENCRYPTION | Encryption at rest for node API tokens: off, migration, or required (note: no XUI_ prefix) | off | | XUI_NODE_TOKEN_KEY_FILE | JSON keyring (mode 0600) holding the active key id and its base64 32-byte keys | /etc/x-ui/node_token_key.json | | XUI_NODE_TOKEN_KEY | A single base64 32-byte key, used only when the key file cannot be loaded | — |

The complete list is on the environment variables reference.

Supported Languages

The panel UI is available in 13 languages:

English · فارسی · العربية · 中文（简体） · 中文（繁體） · Español · Русский · Українська · Türkçe · Tiếng Việt · 日本語 · Bahasa Indonesia · Português (Brasil)

Contributing

Contributions are welcome. Please read the Contributing Guide before opening an issue or pull request.

A Special Thanks to

• alireza0

Acknowledgment

• Iran v2ray rules (License: GPL-3.0): _Enhanced v2ray/xray and v2ray/xray-clients routing rules with built-in Iranian domains and a focus on security and adblocking._
• Russia v2ray rules (License: GPL-3.0): _This repository contains automatically updated V2Ray routing rules based on data on blocked domains and addresses in Russia._

Community Tools

Tools and integrations built by the community around 3x-ui.

• terraform-provider-3x-ui (License: MIT): _Manage inbounds, clients, panel settings, and Xray configuration as code with Terraform / OpenTofu._
• 3X-UI Manager (License: MIT): _Native Android client for 3x-ui — dashboard, inbounds, clients with QR sharing, nodes and multi-panel management. Available on F-Droid._

Support project

If this project is helpful to you, you may wish to give it a:star2:

Star History
